Specifications
|
||
---|---|---|
Model | UISP-FIBER-OLT-XGS | |
Description | Eight-port optical line terminal (OLT) for XGS-PON, supporting 10 Gbps symmetrical uplink/downlink speeds to over 2,000 subscribers via fiber-to-the-home (FTTH) or similar deployments | |
Networking Interfaces | (8) XGS/XG/GPON ports (4) 1/10/25G SFP28 uplink ports (mixed speeds supported at 1/10G; 25G limits all to 25G) | |
Management Interfaces | Ethernet out-of-band, Ethernet in-band, RJ45 serial console, Bluetooth | |
Supported Data Rates | XGS-PON: 10 Gbps bi-directional Uplinks: 1/10/25 Gbps | |
Max Client Capacity | 2048 (256 per PON port) | |
Memory | 512 MB DDR3 | |
Storage | 64 MB NOR + 512 MB NAND | |
Dimensions | 442.4 x 285.6 x 43.7 mm (17.4 x 11.2 x 1.7″) | |
Weight | 5.29 kg (11.7 lb) | |
Form Factor | 1U rack mount | |
Enclosure Material | SGCC steel | |
Power Method | (1) Universal AC input, 100-240V AC, 50/60 Hz (2) Hot-swappable AC/DC PSUs for redundancy | |
Max Power Consumption | 70 W | |
Operating Temperature | -10 to 45°C (14 to 113°F) | |
Operating Humidity | 10 to 95% non-condensing | |
Certifications | CE, FCC, IC | |
NDAA Compliant | Yes |

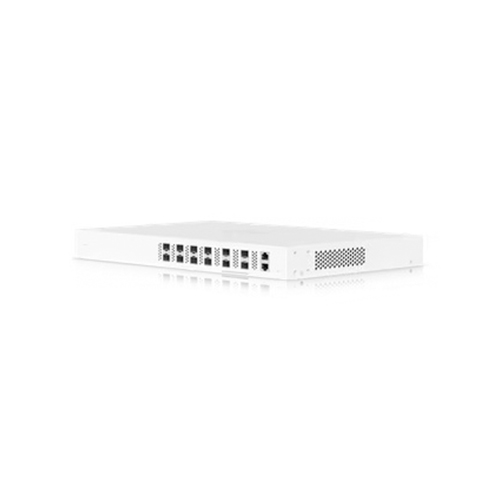

Ubiquiti Unifi UISP UISP-FIBER-OLT-XGS 8-Port XGS-PON Optical Line Terminal, 10 Gbps Symmetrical, 2048 Subscribers Price in Dubai UAE
Enquire on Whatsapp
SKU:
UISP-FIBER-OLT-XGS
Category: Ubiquiti UniFi Accessories
Description
