Specifications
|
||
|---|---|---|
| Model | UISP-FIBER-XG | |
| Description | Optical network unit (ONU) for XG-PON, delivering 2.5 Gbps uplink / 10 Gbps downlink speeds over distances up to 20 km; compatible only with UISP Fiber XGS OLT | |
| Networking Interfaces | (1) SC/APC ITU-G.987 XG-PON WAN port (1) 100/1,000/2,500 MbE RJ45 LAN port | |
| Management Interface | Ethernet in-band PON | |
| Supported Data Rates | Downstream: 9.95 Gbps Upstream: 2.44 Gbps LAN: 100 Mbps / 1 Gbps / 2.5 Gbps | |
| Max Distance | 20 km over single-mode fiber | |
| Optical Wavelength | TX: 1270 nm, RX: 1577 nm | |
| Line Code | Scrambled NRZ | |
| TX Power Range | 2 to 7 dBm | |
| RX Sensitivity Range | -9 to -27 dBm | |
| Power Method | USB-C 5V DC, 3A 24V Passive PoE (10-30V DC) | |
| Max Power Consumption | 6 W | |
| Dimensions | 100 x 100 x 27 mm (3.9 x 3.9 x 1.1″) | |
| Weight | 220 g (0.49 lb) | |
| Enclosure Material | UV-stabilized polycarbonate | |
| Operating Temperature | -15 to 45°C (5 to 113°F) | |
| Operating Humidity | 10 to 95% non-condensing | |
| Memory | 256 MB DDR | |
| Storage | 32 MB NOR flash | |
| Certifications | CE, FCC, IC | |
| NDAA Compliant | Yes | |

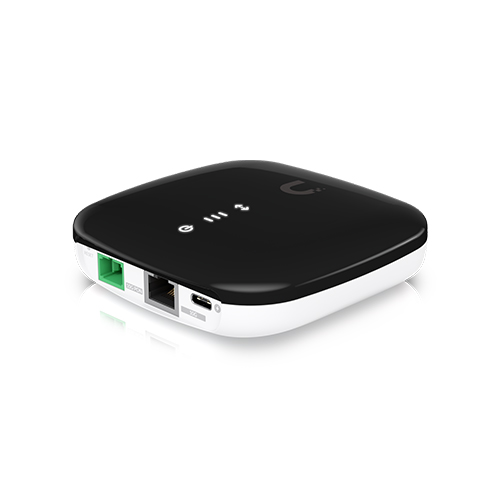

Ubiquiti UniFi UISP-FIBER-XG XG-PON Optical Network Unit, 10Gbps Download/2.5Gbps Upload, SFP+ and 2.5GbE RJ45 Price in Dubai UAE
Enquire on Whatsapp
Description
