Specifications
|
||
|---|---|---|
| Model | UISP-DISH | |
| Frequency Range | 5.15 to 6.875 GHz | |
| Gain | 30 dBi | |
| Beamwidth (3 dB) | Azimuth: 5–6°; Elevation: 5–6° | |
| Beamwidth (6 dB) | Azimuth: 6.5–8°; Elevation: 6.5–8° | |
| Electrical Downtilt | 0° | |
| Polarization | Dual-linear | |
| Cross-Polar Isolation | 20 dB | |
| VSWR | Max. 2:1 | |
| Mounting | Includes alignment mounting kit with ±15° mechanical adjustment | |
| Pole Compatibility | Ø40 to 90 mm (Ø1.57 to 3.5 inches) | |
| Weatherproofing | IPX6 | |
| Enclosure Materials | Powder-coated galvanized steel, UV-stabilized polycarbonate, aluminum alloy | |
| Dimensions | Ø650 × 200 mm (Ø25.6 × 7.9 inches) | |
| Weight | Device: 4.54 kg (10 lbs); Mount: 3.1 kg (6.8 lbs) | |
| Wind Survivability | Up to 200 km/h (124 mph) | |
| Wind Loading | 860 N at 200 km/h | |
| Compliance | NDAA Compliant | |
| Included Accessories | WaveGuide adapter for compatible radios | |

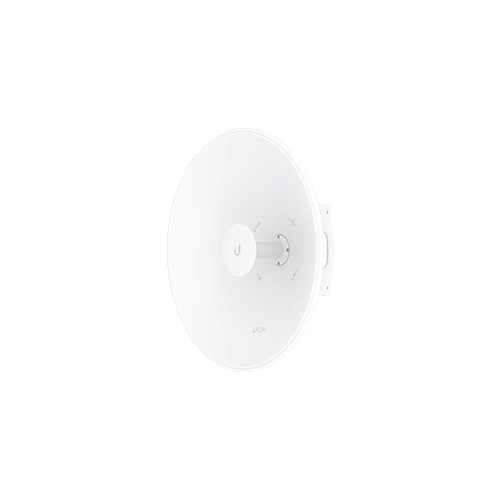

Ubiquiti UniFi UISP-Dish Point-to-Point Antenna Price in Dubai UAE
Enquire on Whatsapp
SKU:
UISP-Dish
Category: Ubiquiti UniFi Out Door Wifi
Description
