Specifications
|
||
---|---|---|
Product Name | Ubiquiti UniFi USW-Pro-XG-24-PoE | |
Category / Type | Professional-grade Layer-3 switch with PoE+++ | |
Form Factor | 1U Rackmount | |
Port Layout | • 16 × 10 GbE RJ45 (PoE+++ capable) • 8 × 2.5 GbE RJ45 (PoE+++ capable) • 2 × 25G SFP28 ports | |
Total PoE Budget | 720 W | |
Per-Port PoE Levels | Supports PoE / PoE+ / PoE++ / PoE+++ (up to 90W on some ports) | |
Layer-3 Features | Inter-VLAN routing, Static routing, DHCP Server / Relay etc. | |
Switching Capacity | 460 Gbps | |
Non-Blocking Throughput | 230 Gbps | |
Forwarding Rate | 342 Mpps | |
Supported VLANs | 1,000 | |
MAC Address Table Size | 128,000 entries | |
L3 Table Sizes | ARP entries: 128,000   IPv4 Routes: 256,000 | |
Packet Buffer Size | 8 MB | |
Power Consumption | ~150 W (excluding PoE load) ~870 W (with full PoE output) | |
Power Input | Universal 100-240V AC, 50/60 Hz Also supports DC backup (USP RPS) | |
Weight | ~7.9 kg (without mounting brackets) ~8.0 kg (with brackets) | |
Dimensions | 442.4 × 480 × 44 mm | |
Operating Temperature | -5 °C to 40 °C | |
Humidity | 10-90% non-condensing | |
Display / Management | 1.3″ touchscreen display Full UniFi Network management (including Etherlighting™ LEDs) | |
Enclosure Material | SGCC steel | |
Certifications | CE, FCC, IC | |
Use Cases | High-density PoE applications (wireless APs, cameras, high-power devices), AV installations, enterprise networks requiring strong throughput with multi-gigabit uplinks |

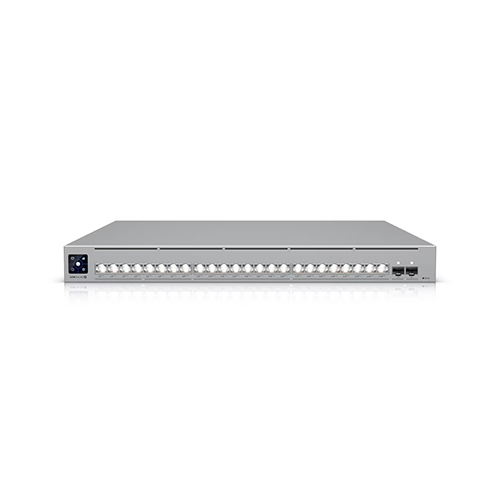

Ubiquiti UniFi USW-Pro-XG-24-PoE Switch Price in Dubai UAE
Enquire on Whatsapp
SKU:
USW-Pro-XG-24-PoE
Category: Ubiquiti UniFi Switches
Description
