Specifications
|
||
---|---|---|

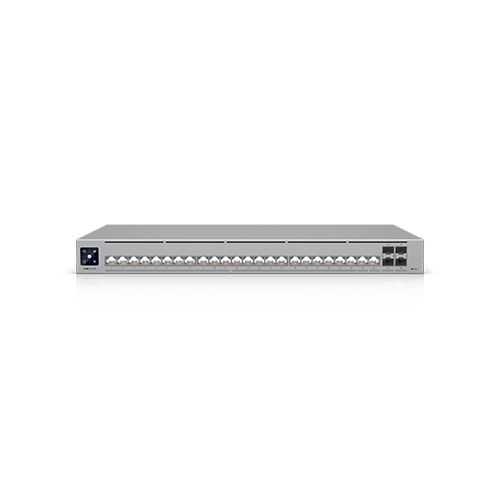

Product Name | Ubiquiti UniFi USW-Pro-HD-24-PoE | |
Category / Type | Professional Layer-3 Switch with PoE++, Multi-Gig Ports | |
Form Factor | 1U Rackmount | |
Port Layout | • 22 × 2.5 GbE RJ45 (all PoE++) • 2 × 10 GbE RJ45 (PoE++) • 4 × 10 Gbps SFP+ uplink ports | |
Total PoE Budget | 600 W | |
Max PoE Output per Port | Up to PoE++ (≈ 64 W on certain ports) | |
Switching Capacity | 230 Gbps | |
Non-Blocking Throughput | 115 Gbps | |
Forwarding Rate | 171 million packets per second (Mpps) | |
Supported VLANs | 1,000 | |
MAC Address Table Size | 32,000 entries | |
Layer-3 Table Sizes | ARP: 12,000 entries IPv4 Routes: 12,000 entries | |
Packet Buffer Size | 2 MB | |
Layer-2 & Other Features | LACP, STP/RSTP, QoS (DSCP), IGMP Snooping, 802.1X, Port Isolation, Multicast & Broadcast Rate Limiting, Jumbo Frames etc. | |
Special Features | Etherlighting™ LEDs, 1.3″ touchscreen, DC power backup option | |
Power Consumption | ~ 60 W (excluding PoE load) Up to ~ 660 W (with full PoE load) | |
Power Input / Supply | Universal 100-240V AC internal power supply; also USP-RPS DC input supported | |
Dimensions | 442 × 400 × 44 mm (17.4 × 15.7 × 1.7 in) | |
Weight | ~ 6.2 kg (without mounting brackets) ~ 6.3 kg (with brackets) | |
Operating Temperature | −5 °C to 40 °C | |
Operating Humidity | 10% to 90%, non-condensing | |
Certifications | CE, FCC, IC |
Ubiquiti UniFi USW-Pro-HD-24-PoE Switch Price in Dubai UAE
Enquire on Whatsapp
SKU:
USW-Pro-HD-24-PoE
Category: Ubiquiti UniFi Switches
Description
