Specifications
|
||
|---|---|---|

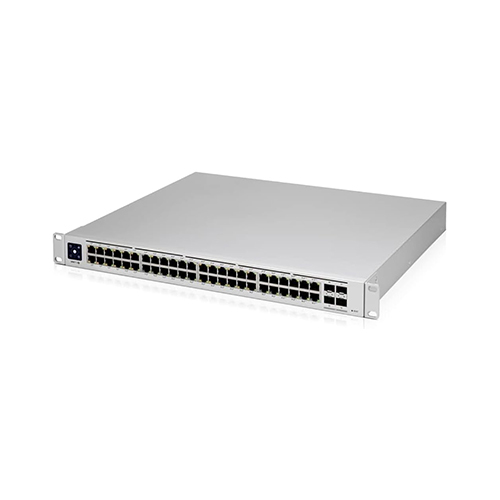

| Product Name | Ubiquiti UniFi USW-Pro-Max-48-PoE Switch | |
| Category / Type | Managed Layer-3 Switch with PoE, Multi-Gig Ports | |
| Form Factor | 1U Rackmount chassis | |
| Ports | • 16 × 1/2.5 GbE RJ45 ports (8 PoE+ 30 W, 8 PoE++ 60 W) • 32 × 1 GbE RJ45 ports (24 PoE+ 30 W, 8 PoE++ 60 W) • 4 × 10 Gbps SFP+ uplink ports | |
| PoE (Power over Ethernet) | Supports PoE, PoE+, PoE++ (up to 60 W per high-power port) Total PoE budget: 720 W | |
| Switching Capacity | 224 Gbps switching capacity 112 Gbps non-blocking throughput | |
| Power Supply | Internal AC/DC power supply ~820 W AC input: 100-240 V, 50/60 Hz Supports redundant DC power input (USP-RPS) Max power draw (excluding PoE): ~100 W | |
| Display | 1.3″ color touch-screen for system status | |
| Special Features | Etherlightingâ„¢ LED indicators Layer-3 support (inter-VLAN routing, static routing, DHCP relay) DC backup / redundant power support | |
| Dimensions | 442.4 × 400 × 44 mm (17.4 × 15.7 × 1.7 in) | |
| Weight | 6.2 kg without rack ears; 6.3 kg with ears | |
| Operating Temperature | −5 °C to 40 °C | |
| Humidity | 10–90% non-condensing | |
| Certifications | CE, FCC, IC | |
| Use Case | Ideal for high-density PoE deployments (APs, cameras, phones) with multi-gig access and high power budget0 | |
