Specifications
|
||
|---|---|---|

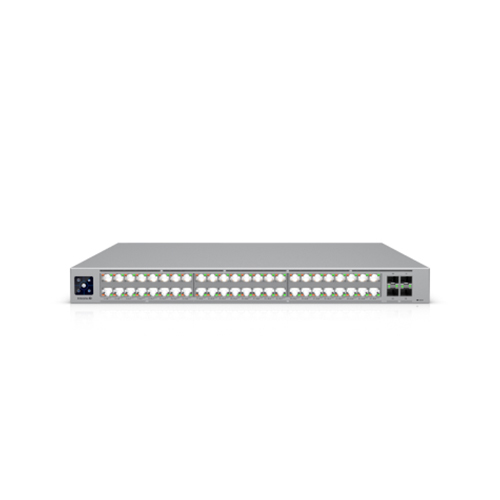

| Product Name | UniFi Enterprise Campus 48 PoE (ECS-48-PoE) | |
| Category / Type | Layer-3 PoE+++ Enterprise Campus Switch | |
| Form Factor | 1U Rackmount, Full-Depth | |
| Port Layout | • 16 × 2.5 GbE RJ45 (All PoE+++) • 32 × 10 GbE RJ45 (All PoE+++) • 4 × 25G SFP28 ports | |
| PoE Level | Supports PoE, PoE+, PoE++, PoE+++ (up to 90 W per port) | |
| Total PoE Budget | Shared Mode (200-240V AC): ~2,150 W Redundant Mode: ~950 W | |
| Power Supplies / Redundancy | 2 Hot-swappable AC/DC power modules (1,200 W each), shared or redundant; 4 hot-swappable fan modules | |
| Switching Capacity | 920 Gbps | |
| Non-Blocking Throughput | 460 Gbps | |
| Forwarding Rate | ~684 million packets per second (Mpps) | |
| Layer-3 Table Sizes | ARP Entries: 128,000 IPv4 Routes: 256,000 | |
| MAC Address Table Size | 128,000 entries | |
| Supported VLANs | 1,000 VLANs | |
| Layer-2 & QoS / Other Features | LACP, STP / RSTP, IGMP snooping, QoS, Port isolation, Jumbo frames, Storm control, ACLs, Port Mirroring, Multicast/Broadcast rate limiting, etc. | |
| Display / Interface | 1.3″ touchscreen display | |
| Dimensions | 442.4 × 43.7 × 496 mm | |
| Weight | ~ 9.46 kg without rack brackets; ~9.56 kg with brackets | |
| Operating Temperature | -5 °C to +40 °C | |
| Operating Humidity | 10-90%, non-condensing | |
| Certifications | CE, FCC, IC | |
Ubiquiti UniFi ECS-48-PoE Switch Price in Dubai UAE
Enquire on Whatsapp
SKU:
ECS-48-PoE
Category: Ubiquiti UniFi Switches
Description
