Specifications
|
||
|---|---|---|

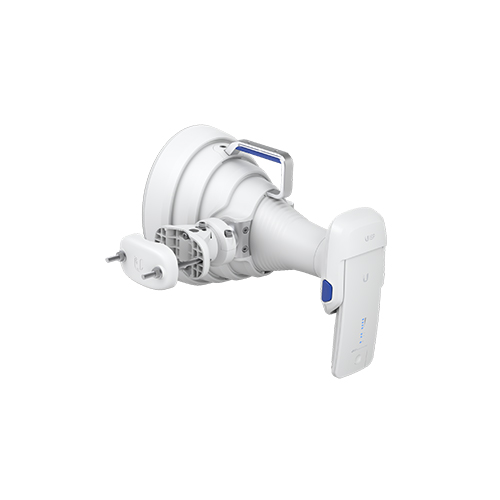

| Model | UISP-Horn | |
| Frequency Range | 5.15 to 6.875 GHz | |
| Gain | 19.5 dBi | |
| Beamwidth (6 dB) | Azimuth: 30°; Elevation: 25° | |
| Front-to-Back Ratio | Typical: 45–50 dB; Minimum: 40 dB | |
| Polarization | Dual-linear (Vertical & Horizontal) | |
| VSWR | Max. 2:1 | |
| Electrical Downtilt | 0° | |
| Mounting | Pole mount (alignment kit included); Mechanical adjustment: ±20° elevation, ±25° azimuth | |
| Pole Compatibility | Ø25 to 70 mm (Ø1 to 3 inches) | |
| Weatherproofing | IPX6 | |
| Enclosure Materials | UV-stabilized polycarbonate, aluminum alloy | |
| Dimensions | 282 × 224 × 380 mm (11.1 × 8.8 × 15 inches) | |
| Weight | Device: 3.06 kg (6.75 lbs); Mount: 925 g (2.04 lbs) | |
| Wind Survivability | Up to 200 km/h (124 mph) | |
| Wind Loading | 90 N at 200 km/h (20 lbf at 124 mph) | |
| Connector Type | WaveGuide adapter (included) | |
| Compatible Radios | airFiber 5XHD, LTU Rocket, Rocket Prism AC 5 GHz | |
| Link Range | Up to 15 km (9.3 miles) in PtMP configurations | |
| Price | Approximately $179 USD | |
