| Feature | Specification |
|---|---|

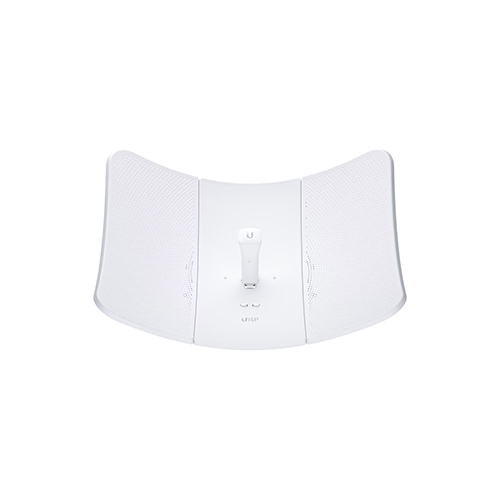

| Model | LBE-5AC-XR (LiteBeam 5AC Extreme-Range) |
| Product Type | Outdoor wireless CPE / station |
| Wireless Standard | airMAX ac (802.11ac) |
| Operating Frequency | 5.15 – 5.85 GHz (varies by region) |
| Maximum Throughput | 450+ Mbps |
| Antenna Gain | 29 dBi |
| Beamwidth | 5.5° (3 dB), 7.5° (6 dB) |
| Radio Modes | PtP (Point-to-Point), PtMP (Point-to-Multipoint) |
| Encryption / Security | WPA2‑AES |
| Max TX Power | 25 dBm |
| Management Radio | 2.4 GHz (dedicated management interface) |
| Channel Widths | 10 / 20 / 30 / 40 / 50 / 60 / 80 MHz |
| Ethernet Port | 1 × Gigabit RJ‑45 Ethernet Port |
| Power Method | Passive PoE (24V, 2-pair) |
| Power Supply Included | 24V, 0.5A Gigabit PoE Adapter |
| Power Consumption | Max 7 W |
| Operating Temperature | -40°C to +70°C |
| Humidity Tolerance | 5% to 95% non-condensing |
| Ingress Protection | IPX6 |
| Wind Loading | 1100 N @ 200 km/h |
| Dimensions (L×W×H) | 747 × 525 × 347 mm |
| Weight | 3.2 kg |
| Enclosure Material | UV-stabilized polycarbonate and aluminum alloy |
| Mounting Options | Pole-mount (Ø 35–60 mm pole diameter) |
| Management Software | airOS, UISP, Web UI, SSH, SNMP |
| Diagnostic Tools | airView, signal alignment, speed test, ping, traceroute |
| Typical Use Case | Long-distance point-to-point wireless bridge (up to 30+ km) |
| Compliance | FCC, IC, CE |
Ubiquiti LBE-5AC-XR AirMax Radio Price in Dubai UAE
