Specifications
|
||
|---|---|---|
| Model | SFP-10G-USR (Huawei Part No. 02310MNW) | |
| Product Type | Optical Transceiver Module | |
| Form Factor | SFP+ (Small Form-factor Pluggable Plus) | |
| Data Rate | 10 Gbps | |
| Transmission Distance | Up to 100 meters (OM3), 30 meters (OM2), 150 meters (OM4) | |
| Wavelength | 850 nm (Short Range) | |
| Fiber Type | Multi-mode Fiber (OM2/OM3/OM4) | |
| Connector Type | LC Duplex | |
| Interface Standard | 10GBASE-USR (non-standard) | |
| Transmitter Type | VCSEL (Vertical Cavity Surface Emitting Laser) | |
| Receiver Type | PIN Photodiode | |
| Digital Diagnostic Monitoring (DDM) | Supported (real-time monitoring of optical parameters) | |
| Power Consumption | < 1W (typical) | |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) | |
| Compliance | RoHS Compliant, MSA Compliant | |
| Use Case | Short-distance 10G Ethernet over multi-mode fiber | |

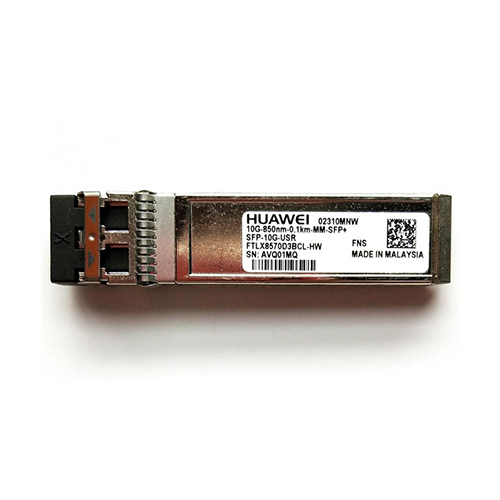

Huawei SFP-10G-USR ,SFP-10G-USR,10GBase-USR Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.1km,LC) Price in Dubai UAE
Enquire on Whatsapp
Description
