Specifications
|
||
|---|---|---|

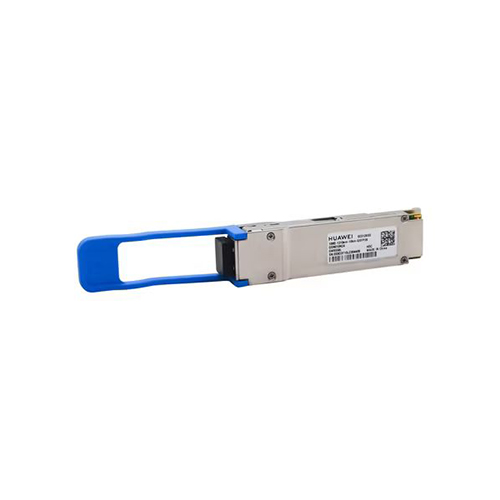

| Model | QSFP-100G-CWDM4-ISP (Huawei Part No. 02312DYA) | |
| Product Type | Optical Transceiver | |
| Form Factor | QSFP28 (Quad Small Form-factor Pluggable 28) | |
| Data Rate | 100 Gbps | |
| Transmission Distance | Up to 2 kilometers | |
| Wavelength | 1310 nm (Coarse Wavelength Division Multiplexing – CWDM) | |
| Fiber Type | Single-mode Fiber (SMF, G.652) | |
| Connector Type | Dual LC Duplex | |
| Interface Standard | 100GBASE-CWDM4 (non-standard) | |
| Transmitter Type | CWDM DFB (Distributed Feedback) Laser | |
| Receiver Type | PIN Photodiode | |
| Digital Diagnostic Monitoring (DDM) | Supported (real-time monitoring of optical parameters) | |
| Power Consumption | < 3.5 W (typical) | |
| Hot Swappable | Yes | |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) | |
| Applications | Data Center Interconnects, Enterprise Core Networks, Long-distance Optical Links | |
| Compliance | RoHS Compliant, MSA Compliant, IEEE Standard Compatible | |
| Use Case | Short to medium-distance 100G Ethernet over single-mode fiber | |
Huawei QSFP-100G-CWDM4-ISP 100GBase-CWDM4 Optical Transceiver,QSFP28,100G,Single-mode (1310nm,2km,LC,ISP) Price in Dubai UAE
