Specifications
|
||
|---|---|---|

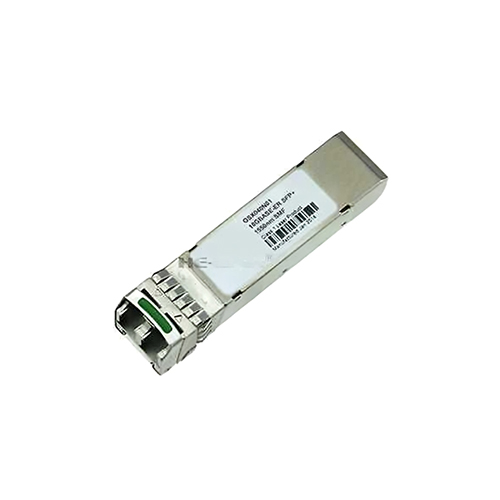

| Model | OSX040N01 (Huawei Part No. 02310CNF) | |
| Product Type | Optical Transceiver Module | |
| Form Factor | SFP+ (Small Form-factor Pluggable Plus) | |
| Data Rate | 10 Gbps | |
| Transmission Distance | Up to 40 kilometers | |
| Wavelength | 1550 nm (single-mode) | |
| Fiber Type | Single-mode Fiber (SMF) | |
| Connector Type | LC Duplex | |
| Interface Standard | 10GBASE-ER (IEEE 802.3ae compliant) | |
| Transmitter Type | DFB (Distributed Feedback) Laser | |
| Receiver Type | PIN Photodiode | |
| Digital Diagnostic Monitoring (DDM) | Supported (real-time monitoring of optical parameters) | |
| Power Consumption | < 1W (typical) | |
| Hot Swappable | Yes | |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) | |
| Compliance | RoHS Compliant, MSA Compliant, IEEE Standard Compatible | |
| Use Case | Long-distance 10G Ethernet over single-mode fiber | |
Huawei OSX040N01 Enterprise Networking Product,OSX040N01,Optical Transceiver,SFP+,10G,Single-mode Module(1550nm,40km,LC) Price in Dubai UAE
