Specifications
|
||
|---|---|---|
| Model | SRV240RLBP‑9A | |
| Product Type | External Battery Pack (Rack‑Mount) | |
| Compatible UPS Series | APC Easy UPS On‑Line SRV 6 kVA and 10 kVA rack/tower models | |
| Battery Output Voltage | 240 V DC | |
| Battery Type | Sealed Lead‑Acid (VRLA) | |
| Battery Configuration | 20 × 12 V battery blocks in series (to achieve 240 V DC) | |
| Extended Runtime Support | Yes — adds extended run time when connected to compatible UPS | |
| Rack Mounting | Yes (Rack‑mount enclosure designed for standard 19″ racks) | |
| Rack Height | Approx. 3U | |
| Approx. Dimensions (H × W × D) | Approx. 130 mm × 438 mm × 410 mm | |
| Approx. Net Weight | Approx. 50–60 kg (varies with batteries installed) | |
| Color | Black | |
| Operating Temperature | 0 °C – 40 °C | |
| Operating Humidity | 0–95 % (non‑condensing) | |
| Operating Altitude | Up to ~3000 m | |
| Storage Temperature | –15 °C – 40 °C | |
| Storage Relative Humidity | 0–95 % (non‑condensing) | |
| Certifications / Safety Standards | CE, UKCA, EAC, IEC/EN battery safety standards | |

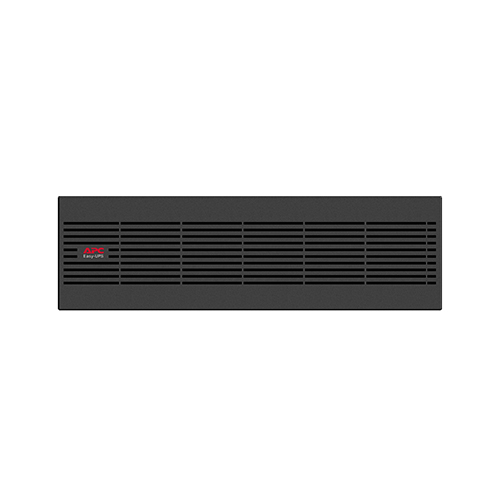

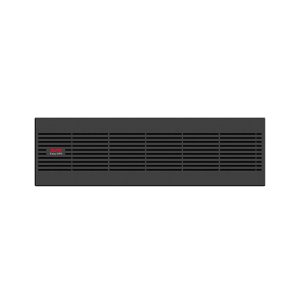

APC SRV240RLBP-9A Easy UPS SRV 240 V Rack-Mount Battery Pack for 6 kVA and 10 kVA UPS, Extended Runtime Price in Dubai UAE
Enquire on Whatsapp
Description
