Specifications
|
||
|---|---|---|
| Model | SRV240BP‑9A | |
| Product Type | External UPS Battery Pack (Empty Housing) | |
| Compatible UPS Series | APC Easy UPS On‑Line SRV 6 kVA & 10 kVA Tower Models | |
| Battery Output Voltage | 240 V DC | |
| Battery Type Supported | Sealed Lead‑Acid (VRLA) | |
| Battery Configuration Supported | Up to 20 × 12 V batteries in series (user-installed) | |
| Maximum Battery Capacity (approx.) | Up to ~2160 VAh (depending on batteries used) | |
| Battery Expansion | Supports multiple battery packs in parallel for extended runtime | |
| Mounting Mode | Floor/tower standalone unit (not rack-mountable) | |
| Dimensions (H × W × D) | Approx. 368 × 190 × 485 mm | |
| Net Weight (without batteries) | Approx. 60 kg | |
| Color | Black | |
| Operating Temperature | 0 °C – 40 °C | |
| Operating Relative Humidity | 0 – 95 % (non-condensing) | |
| Operating Altitude | Up to ~3000 m | |
| Storage Temperature | –15 °C – 40 °C | |
| Storage Relative Humidity | 0 – 95 % (non-condensing) | |
| Certifications / Compliance | CE, UKCA, EAC, EN/IEC 62040‑1 | |

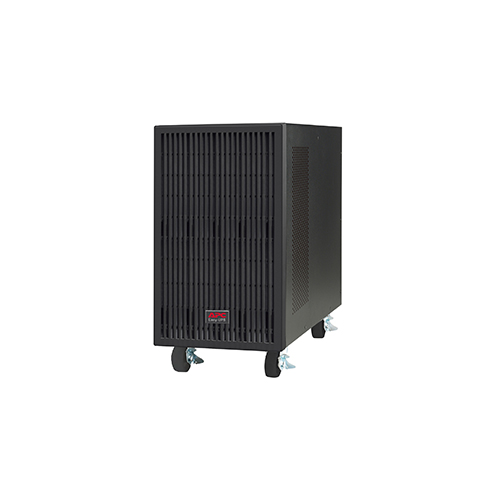

APC SRV240BP-9A Easy UPS SRV 240V Battery Pack for 6&10kVA Tower, No Battery Model Price in Dubai UAE
