Specifications
|
||
|---|---|---|
| Model | SRV10KRIL | |
| Series | APC Easy UPS SRV | |
| UPS Type | Online Double-Conversion | |
| Form Factor | Rack-Mount | |
| Rated Capacity | 10,000 VA / 10,000 W | |
| Nominal Output Voltage | 230 V AC | |
| Output Voltage Range | Configurable: 220 / 230 / 240 V | |
| Output Frequency | 50 / 60 Hz (Auto-sensing) | |
| Waveform | Pure Sine Wave | |
| Efficiency (Online Mode) | Up to 94% | |
| Crest Factor | 3:1 | |
| Bypass | Internal automatic & manual bypass | |
| Input Voltage Range | 110 – 300 V AC (load dependent) | |
| Input Frequency Range | 40 – 70 Hz | |
| Input Connection | Hard-wire (1 Phase + Neutral + Earth) | |
| Output Connection | Hard-wire (1 Phase + Neutral + Earth) | |
| Battery Configuration | External battery pack | |
| Battery Type | VRLA (Valve-Regulated Lead Acid) | |
| Battery Voltage | 240 V DC (typical) | |
| Recharge Time | Approx. 5–8 hours | |
| Expandable Runtime | Yes (supports additional external battery packs) | |
| Display Interface | Multifunction LCD | |
| Communication Ports | USB, RS-232, SmartSlot | |
| Emergency Power Off (EPO) | Supported | |
| Audible Alarms | On battery, low battery, overload, fault | |
| Rack Height | Approx. 5U | |
| Dimensions (W × H × D) | ~438 × 220 × 615 mm (UPS only) | |
| Net Weight | ~78 kg (UPS only) | |
| Operating Temperature | 0°C to 40°C | |
| Operating Humidity | 0–95% (non-condensing) | |
| Operating Altitude | Up to 3000 m | |
| Certifications | CE, IEC 62040, RoHS, REACH | |

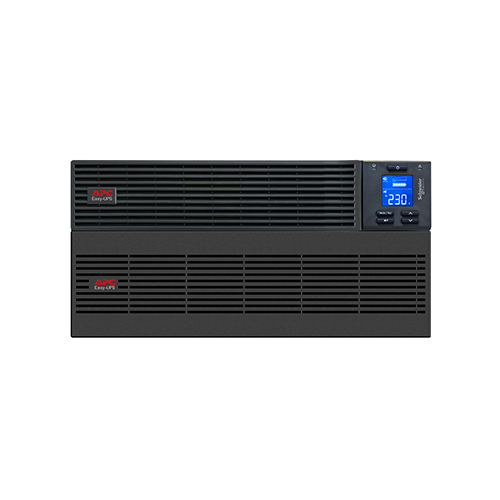

APC SRV10KRIL Easy UPS SRV RM 10000VA 230V Rack-Mount UPS with External Battery Pack Price in Dubai UAE
