Specifications
|
||
|---|---|---|
| Model | SRV10KRI | |
| Product Type | On-Line Double Conversion UPS | |
| Rated Capacity | 10,000 VA / 10,000 W | |
| Topology | Double-conversion (Online) | |
| Output Voltage (Nominal) | 230 V (Configurable 220 / 240 V) | |
| Output Frequency | 50/60 Hz ± 3 Hz (sync to mains) | |
| Waveform Type | Pure sine wave | |
| Efficiency (Full Load) | ≈ 94% | |
| Crest Factor | 3:1 | |
| Bypass | Internal (Automatic & Manual) | |
| Input Voltage Range | 110–300 V (Half Load), 176–300 V (Full Load) | |
| Input Frequency Range | 40–70 Hz (Auto sensing) | |
| Input/Output Connectors | Hard wire 3-wire (1P + N + E) | |
| Communication Interfaces | RS-232, USB, SmartSlot | |
| Control & Display | Multifunction LCD status & control | |
| Audible Alarms | Low battery, overload, on battery | |
| Battery Type | Lead-acid VRLA | |
| Typical Recharge Time | ~3 hours | |
| Surge Protection | 600 J | |
| Rack Height | ~4U | |
| Dimensions (W × H × D) | ~438 × 173 × 615 mm | |
| Net Weight | ~68 kg | |
| Operating Temp. | 0–40 °C | |
| Relative Humidity (Operating) | 0–95% (Non-condensing) | |
| Operating Altitude | 0–3000 m | |
| Certifications | CE, UKCA, EAC, TISI, IEC 62040 | |

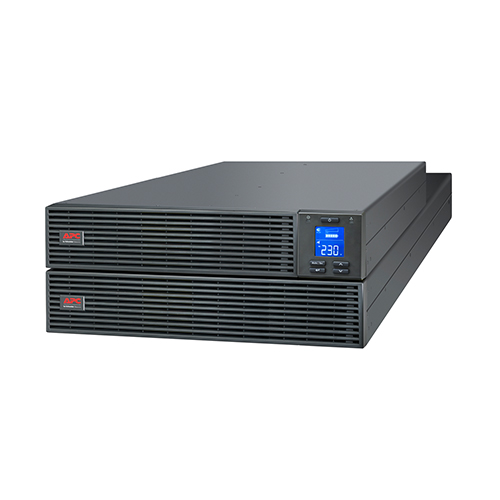

APC SRV10KRI Easy UPS SRV RM 10000VA 230V Rack-Mount UPS Price in Dubai UAE
