Specifications
|
||
|---|---|---|

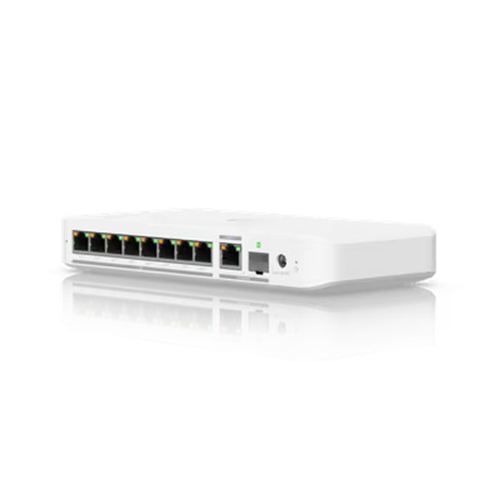

| Product Name | Ubiquiti UniFi USW-Flex-2.5G-8-PoE | |
| Category / Type | Managed Layer-2 Multi-Gigabit PoE++ Switch | |
| Form Factor / Mounting | Compact desktop; wall mount included; DIN rail mount optional | |
| Port Layout | 8 × 2.5 GbE RJ45 (all PoE++) 1 × Combo 10 GbE RJ45 / SFP+ uplink port | |
| Supported Speeds (RJ45 Ports) | 2.5 / 1 / 100 Mb/s / 10 Mb/s on the 8 PoE++ ports; the combo port supports 10 / 5 / 2.5 / 1 / 100 Mb/s when in RJ45 mode or 10G when using SFP+ | |
| Power Input Methods | • PoE+++ (over the combo RJ45 port) • External AC-DC adapter (54V DC) | |
| Maximum PoE Budget (varies by input type) | • ~ 76 W when powered via PoE+++ input • ~ 46 W with PoE++ input • ~ 16 W with PoE+ input • ~ 196 W using the optional 210 W AC adapter | |
| Max PoE per Port (PSE output) | • PoE: ~ 15.4 W • PoE+: ~ 30 W • PoE++: up to ~ 60 W (depending on port and overall power budget) | |
| Switching Capacity | 60 Gbps | |
| Non-Blocking Throughput | 30 Gbps | |
| Forwarding Rate | ~ 45 million packets per second | |
| Supported VLANs | 256 VLANs | |
| MAC Address Table Size | 4,000 entries | |
| Layer-2 Features | STP / RSTP; Flow control; Storm control; Port mirroring; Port isolation; Jumbo frames; Loop protection; Egress rate limiting; Multicast/broadcast rate limiting | |
| Physical Dimensions | ≈ 212.9 × 99.4 × 33.5 mm | |
| Weight | ~ 567 g | |
| Operating Temperature | -20 °C to +45 °C | |
| Humidity | 10-90% non-condensing | |
| Certifications / Compliance | CE, FCC, IC; NDAA compliant | |
Ubiquiti UniFi USW-Flex-2.5-8-PoE 8-Port 2.5 GbE Switch with PoE Price in Dubai UAE
Enquire on Whatsapp
