Specifications
|
||
|---|---|---|
| Model / Series | SLC CUBE4 – 40 kVA class | |
| Rated Power (VA / W) | 40,000 VA / 40,000 W (PF = 1) | |
| Technology | On‑line, double‑conversion, high‑frequency (HF), DSP‑controlled | |
| Input Type | 3‑Phase + Neutral | |
| Input Nominal Voltage | 3 × 380 V / 3 × 400 V / 3 × 415 V (3F + N) | |
| Input Voltage Range | 115 V – 265 V (F‑N) for 30‑80 kVA class | |
| Input Frequency (Nominal) | 50 Hz / 60 Hz | |
| Input Frequency Range | 45 Hz – 65 Hz for 30‑80 kVA class | |
| Input THDi (Distortion) | < 3% | |
| Input Power Factor | PF = 1 from ~10% load | |
| Output Voltage (Nominal) | 3 × 380 V / 3 × 400 V / 3 × 415 V (3F + N) | |
| Output Static Accuracy | ± 0.5% (for 30‑80 kVA class) | |
| Output Dynamic Accuracy | ± 10% | |
| Efficiency (Online Mode) | > 96% | |
| Efficiency (Eco Mode) | Up to ~99% | |
| Crest Factor | 3 : 1 | |
| Overload Capability | 125% for 10 minutes; 125‑135% for 5 minutes; 135‑150% for 60s; >150% immediate | |
| Battery Type Compatibility | Pb‑Ca, VRLA, Gel, Ni‑Cd, Lithium‑Ion | |
| Communication Interfaces | RS‑232/RS‑485/USB, relay contacts, intelligent slot for SNMP/NIMBUS | |
| Display / Control Panel | 5” colour touchscreen | |
| Operating Temperature | 0 °C to +40 °C (with appropriate derating above) | |
| Relative Humidity | Up to 95% non‑condensing | |
| Maximum Operating Altitude | Up to ~2,400 m without derating | |
| Dimensions (W × D × H) | ~ 380 mm × 910 mm × 1,045 mm | |
| Weight | ~ 334 kg | |
| Standard Certifications | IEC/EN 62040‑1 ; IEC/EN 62040‑2 (C3) ; EN/IEC 62040‑3 (VFI‑SS‑11) | |

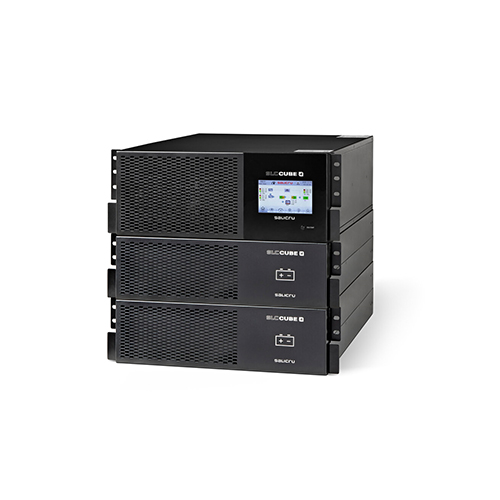

Salicru 6B3AF000004 SLC‑20‑CUBE4 R – 20 kVA Three‑Phase Online UPS Price in Dubai UAE
