Specifications
|
||
|---|---|---|
| Model / Code | SLC‑30‑CUBE4 B1 / 6B3AC000004 | |
| Rated Power (VA / W) | 30,000 VA / 30,000 W | |
| Technology | On‑line double‑conversion, high‑frequency (HF), DSP control | |
| Output Power Factor | 1.0 (kVA = kW) | |
| Input Type | 3‑Phase + Neutral | |
| Input Nominal Voltage | 3 × 380 V / 3 × 400 V / 3 × 415 V (3F + N) | |
| Input Voltage Range | 115 V – 265 V (Phase‑Neutral) [for 30‑80 kVA range] | |
| Input Frequency (Nominal) | 50 Hz / 60 Hz | |
| Input Frequency Range | 45 Hz – 65 Hz [for 30‑80 kVA range] | |
| Input Distortion (THDi) | < 3% | |
| Input Power Factor | 1 (from 10% load) | |
| Output Voltage (Nominal) | 3 × 380 V / 3 × 400 V / 3 × 415 V (3F + N) | |
| Static Output Accuracy | ±0.5% (for 30‑80 kVA range) | |
| Dynamic Output Accuracy | ±2% | |
| Efficiency (Online Mode) | > 96% | |
| Efficiency (Eco/Standby Mode) | Up to ~98.9% | |
| Crest Factor | 3 : 1 | |
| Overload Capability | 125% for 10 min; 125‑135% for 5 min; 135‑150% for 60 s; >150% immediate (30‑80 kVA) | |
| Compatible Battery Types | Pb‑Ca, VRLA, Gel, Ni‑Cd, Lithium‑Ion | |
| Communication Interfaces | RS‑232, RS‑485, USB, relay contacts + intelligent slot (e.g., SNMP/NIMBUS) | |
| Display / Control Panel | Colour touchscreen (5″) | |
| Operating Temperature | 0 °C to +40 °C | |
| Relative Humidity | Up to 95% non‑condensing | |
| Maximum Operating Altitude | Up to 2,400 m above sea level (with standard rating) | |
| Dimensions (W × D × H) | 380 mm × 910 mm × 1,045 mm | |
| Weight | ~229 kg | |

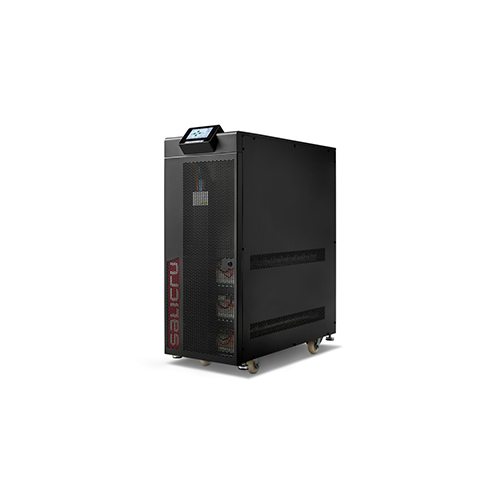

Salicru 6B3AC000004 SLC CUBE4 30kVA Online UPS with Extra Charger Price in Dubai UAE
