Specifications
|
||
|---|---|---|
| Model / Code | EQX2 8002-T / 6B2AB000012 | |
| Rated AC Output Power | 8,000 W | |
| Maximum DC Input Power | 12,800 W | |
| Maximum DC Input Voltage | 1,100 V | |
| MPPT Voltage Range (Vdc) | 160 V to 1,000 V | |
| Starting (Minimum) DC Voltage | 180 V | |
| Number of MPPT Trackers | 2 | |
| Inputs per MPPT | 1 string per tracker | |
| Maximum Short-Circuit Current (Isc PV) | 20 A / 20 A | |
| Output Power Factor | Adjustable: 0.8 (inductive) to 0.8 (capacitive) | |
| Maximum Apparent AC Output | 8,800 VA | |
| Output Current (Rated) | 11.6 A | |
| Total Harmonic Distortion (THD) | < 3% | |
| Efficiency (EU Typical) | Approximately 97.9 % | |
| Maximum Efficiency | Up to ~98.6 % | |
| Network Voltage / Connection Type | 3 × 400 V three-phase (3L, N, PE) | |
| IP Rating | IP65 | |
| Operating Temperature Range | –30 °C to +60 °C (with derating above approx 45 °C) | |
| Cooling | Passive (natural convection), fan-less | |
| Noise Level | ≤ 25 dB at 1 metre | |
| Dimensions (W × D × H) | 550 mm × 175 mm × 410 mm | |
| Weight | 23 kg | |
| Installation | Wall-mounted; suitable for indoor/outdoor | |
| Protection / Features | Integrated DC disconnector; islanding prevention; over-voltage & over-temperature protection | |

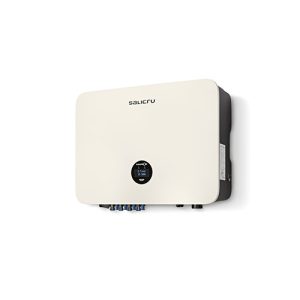

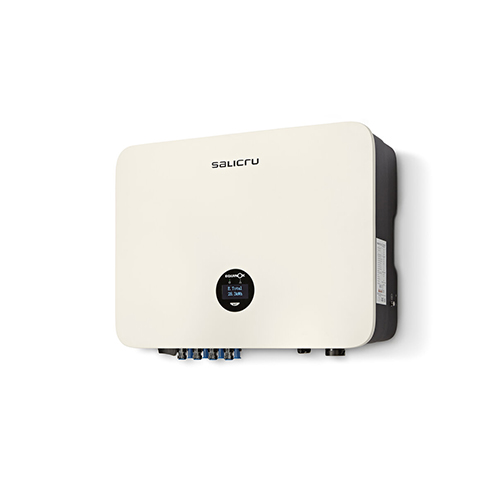

Salicru 6B2AB000012 EQX2 8002-T 8kW Three-Phase On-Grid Solar Inverter Price in Dubai UAE
