Specifications
|
||
|---|---|---|
| Model / Code | EQX2 15002-T / 6B2AB000015 | |
| Maximum Output Power (W) | 15,000 W | |
| Maximum DC Input Power (W) | 24,000 W | |
| Maximum DC Input Voltage (Vdc) | 1,100 V | |
| Starting (Minimum) DC Voltage (Vdc) | 180 V | |
| MPPT Voltage Range (Vdc) | 160 V ÷ 1,000 V | |
| Inputs per MPPT | 1 or 2 per tracker | |
| Max. Short-Circuit Current per MPPT (Isc) | 20/40 A | |
| Output Power Factor | 0.8 (inductive) … 0.8 (capacitive) | |
| Network Voltage | 3 × 400 V three-phase (3L, N, PE) | |
| Maximum Apparent Output Power (VA) | 16,500 VA | |
| Total Harmonic Distortion (THD) | < 3 % | |
| Efficiency (EU typical) | ~97.9 % ÷ ~98.2 % | |
| Maximum Efficiency | ~98.1 % ÷ ~98.6 % | |
| Operating Temperature Range | -30 °C to +60 °C (derating above ~45 °C) | |
| Altitude Rating | Up to ~3,000 m above sea level (with degradation to ~4,000 m) | |
| Degree of Protection (IP Rating) | IP65 | |
| Cooling | Natural convection (fanless) | |
| Noise Level | ≤ 25 dB at 1 m | |
| Dimensions (W × D × H) | 550 mm × 175 mm × 410 mm | |
| Weight | ~26 kg | |
| Topology | Transformerless, on-grid | |

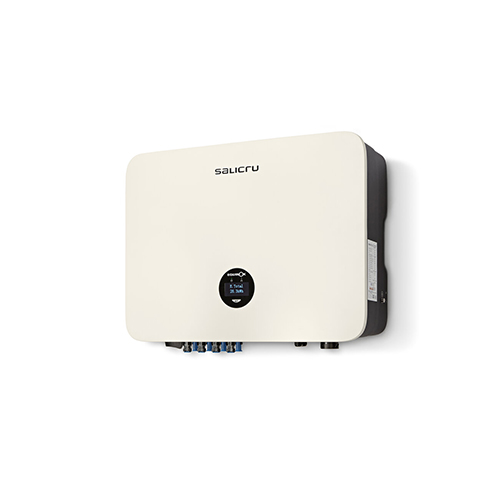

Salicru 6B2AB000015 EQX2 15002-T 15kW Three-Phase On-Grid Solar Inverter Price in Dubai UAE
