| Brand |
Huawei |
| Model |

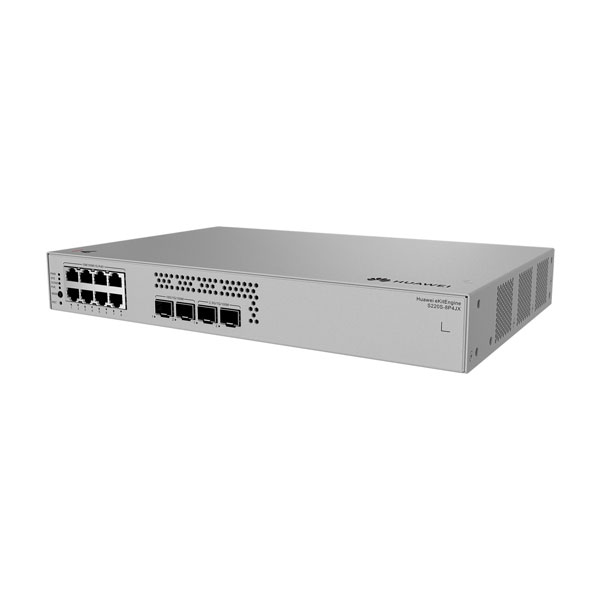

S220S-8P4JX |
| Product Type |
Managed Network Switch |
| Downlink Ports |
8 × 10/100/1000BASE-T PoE+ ports |
| Uplink Ports |
2 × 10GE SFP+ ports, 2 × 2.5GE SFP ports |
| PoE Support |
Yes (IEEE 802.3af/at) |
| PoE Power Budget |
128 W |
| Power Supply |
Built-in AC Power |
| Cooling |
Fanless (natural heat dissipation) |
| Switching Capacity |
Approx. 80 Gbps (estimated) |
| Forwarding Rate |
Approx. 60 Mpps (estimated) |
| MAC Address Table |
8,000 entries |
| VLAN Support |
4,094 VLANs |
| QoS Support |
8 queues per port, ACL-based traffic control |
| Security Features |
DHCP snooping, port isolation, MAC filtering, DoS protection |
| Management Options |
Web GUI, Huawei eKit App, SNC cloud platform |
| Power Consumption |
Max 161 W (with full PoE load) |
| Operating Temperature |
–5°C to +40°C |
| Form Factor |
Compact, desktop or wall-mountable |
| Noise Level |
0 dB (fanless design) |
| Use Case |
Ideal for quiet environments with PoE needs and high-speed uplinks |
