| Attribute | Details |
|---|---|
| Brand | Huawei |
| Model | S220S-10PN4JX |
| Product Type | Managed Layer 2 Gigabit Ethernet Switch |
| Downlink Ports | 6 × 10/100/1000BASE-T PoE+ ports<br>2 × 10/100/1000BASE-T ports<br>2 × 10M/100M/1000M/2.5GBASE-T PoE+ ports |
| Uplink Ports | 2 × 10GE SFP+ ports<br>2 × 2.5GE SFP ports |
| PoE Support | Yes (IEEE 802.3af/at) |
| PoE Power Budget | 128 W |
| Switching Capacity | 76 Gbps |
| Forwarding Rate | 57 Mpps |
| MAC Address Table | 16,000 entries |
| VLAN Support | Up to 4,096 VLANs |
| QoS Support | 8 queues per port, ACL-based traffic control |
| Security Features | DHCP snooping, port isolation, MAC filtering, DoS protection |
| Management Options | Web GUI, Huawei eKit App, SNC cloud platform |
| Power Supply | Built-in AC (100–240 V AC, 50/60 Hz) |
| Power Consumption | Max: 162.36 W (PoE: 128 W) |
| Cooling | Fanless (natural heat dissipation) |
| Dimensions (H × W × D) | 43.6 mm × 320 mm × 210 mm |
| Weight | 2.55 kg (without packaging) |
| Operating Temperature | –5°C to +40°C |
| Form Factor | 1U, rack-mountable, desktop, or wall-mountable |
| Noise Level | 0 dB (fanless design) |
| Use Case | Ideal for small to medium-sized businesses requiring PoE+ support and high-speed uplinks in a quiet, fanless design |

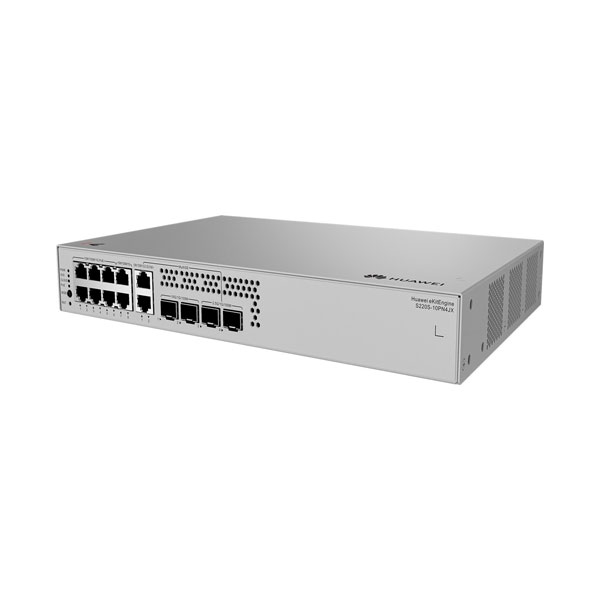

Huawei S220S-10PN4JX Switch – 10-Port Gigabit PoE+ (128W), 2×10GE SFP+ & 2×2.5GE SFP Uplinks, Fanless, AC Power Price in Dubai UAE
Enquire on Whatsapp
Description
