| Model |

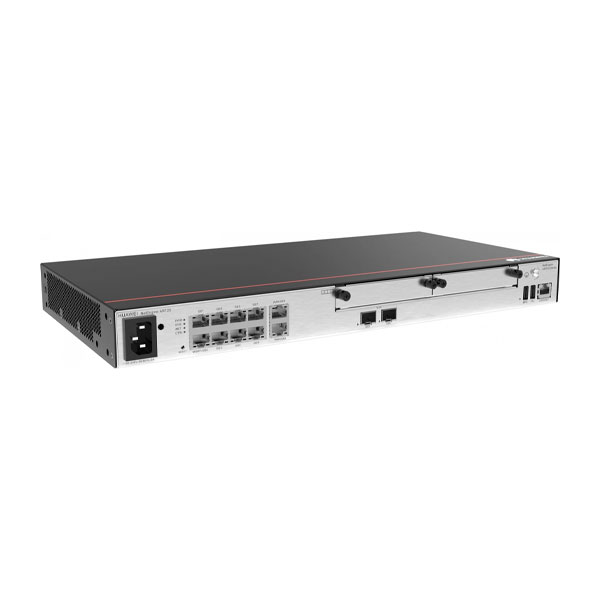

Huawei NetEngine AR730 |
| Processor |
ARM64 Quad-core |
| Forwarding Performance |
9 to 25 million packets per second (Mpps) |
| Outbound Bandwidth |
6 Gbps |
| Fixed WAN Ports |
2 × GE combo ports (Gigabit Ethernet / SFP), 1 × 10GE SFP+ optical port (compatible with GE optical) |
| Fixed LAN Ports |
1 × GE combo port, 8 × GE electrical ports (can be switched to WAN ports) |
| SIC Slots |
2 (supports hot-swapping) |
| WSIC Slot |
0/1 (default/maximum) |
| Console Port |
1 × RJ45 serial port |
| USB Ports |
2 × USB ports |
| Memory |
4 GB |
| Flash Memory |
1 GB (512 MB usable) |
| Dimensions (W × D × H) |
442 mm × 220 mm × 43.6 mm |
| Weight |
3.2 kg |
| Rack Mount |
Yes (1U rack space) |
| Power Supply |
100–240 V AC, 50/60 Hz |
| Maximum Power Consumption |
33 W |
| Operating Temperature |
0°C to 45°C |
| Operating Humidity |
5% to 95% (non-condensing) |
| Storage Temperature |
–40°C to +70°C |
| Storage Humidity |
5% to 95% (non-condensing) |
| Noise Level |
52.3 dB |
| Airflow |
Left to right |
| Security Features |
Built-in firewall, Intrusion Prevention System (IPS), URL filtering, 802.1X authentication, MAC address authentication, Portal authentication, AAA (RADIUS, HWTACACS), PKI, Broadcast storm suppression, ARP security, ICMP attack defense, Unicast Reverse Path Forwarding (URPF), Committed Access Rate (CAR), Blacklist, Attack source tracing, Online behavior management |
| VPN Support |
IPSec VPN, GRE VPN, Distributed Security VPN (DSVPN), A2A VPN, L2TP VPN, L2TPv3 VPN |
| Routing Protocols |
IPv4: Static route, RIP, OSPF, IS-IS, BGP; IPv6: Static route, RIPng, OSPFv3, IS-ISv6, BGP4+ |
| Multicast Support |
IGMP v1/v2/v3, PIM-SM, PIM-DM, MSDP, MBGP, IPv6 PIM, MLD |
| MPLS Support |
LDP, MPLS L3 VPN, VLL, PWE3, static LSP, dynamic LSP, MPLS Traffic Engineering (TE), IP Fast Reroute (FRR), LDP FRR, TE FRR |
| Quality of Service (QoS) |
DiffServ mode, MPLS QoS, Priority mapping, Traffic policing (CAR), Traffic shaping, Congestion avoidance, Congestion management (HQoS, MQC), Hierarchical QoS, Smart Application Control (SAC) |
| WAN Optimization |
Multi-feed and selective receiving, per-packet load balancing |
| Management Interfaces |
Command Line Interface (CLI), SNMP (v1/v2c/v3), Web-based GUI, NETCONF/YANG, CloudCampus, Auto-Config, Email/USB/DHCP-based deployment, NETStream, TWAMP, IP Flow Performance Measurement (IP FPM), TCP FPM, IP accounting, Network Quality Analysis (NQA) |
