Specifications
|
||
|---|---|---|
| Brand | DME PROLINK | |
| Model Number | D1619‑SCA77A21 | |

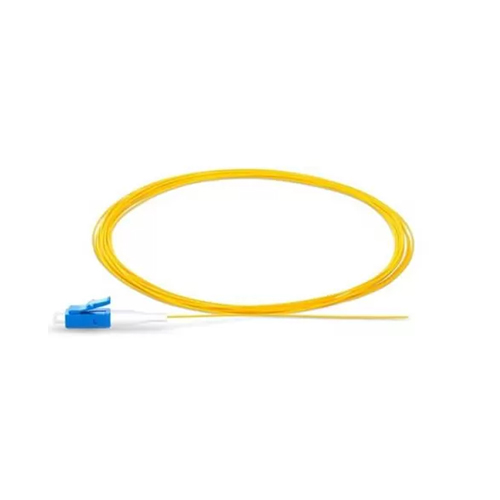

| Product Name | LC/UPC Single‑Mode G.657A2 Fiber Optic Pigtail | |
| Connector Type | LC/UPC (Ultra Physical Contact) | |
| Polish Type | UPC | |
| Fiber Type | Single‑Mode, G.657A2 (bend‑insensitive) | |
| Cable Type | Pigtail (single‑ended fibre with connector) | |
| Cable Diameter | Typically ~2.0 mm outer diameter | |
| Cable Length | 1 m (as indicated by “77A21” suffix) | |
| Jacket Material | LSZH (Low Smoke Zero Halogen) | |
| Jacket Colour | Yellow (standard for single‑mode) | |
| Insertion Loss | ≤ 0.3 dB | |
| Return Loss | ≥ 65 dB | |
| Operating Wavelength | 1310 nm / 1550 nm (typical for single‑mode) | |
| Operating Temperature | ‑40 °C to +75 °C | |
| Storage Temperature | ‑45 °C to +85 °C | |
| Applications | FTTx, telecom networks, data centres, single‑mode backbone links | |
| Compliance / Standards | Fibre designed to ITU‑T G.657; connector to IEC 61754‑20 & IEC 61300 series | |
| Features | Bend‑insensitive G.657A2 fibre, precision LC/UPC connector, LSZH jacket, factory‑tested | |
| Packaging | Individually packed with factory test report | |
DME PROLINK D1619-SCA77A21 SC/APC Single-Mode G.657A2 Fiber Optic Pigtail Price in Dubai UAE
