Specifications
|
||
|---|---|---|
| Model / Part Number | D0713-C6UNRJ45 | |

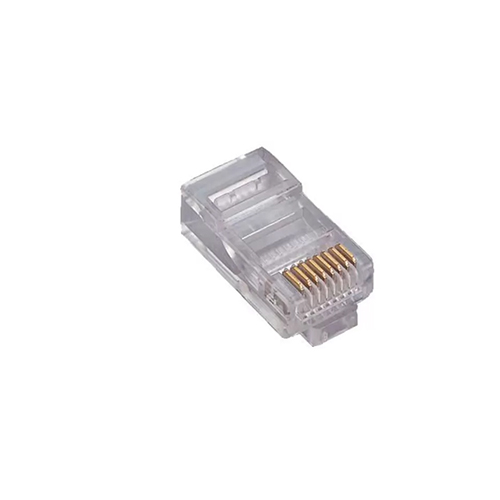

| Product Type | CAT6 Unshielded (U/UTP) RJ45 Male Plug | |
| Connector Type | 8P8C (8 Position, 8 Contact) Modular Plug | |
| Category Performance | Meets CAT6 performance requirements (ANSI/TIA-568.2-D, ISO/IEC 11801 Class E) | |
| Intended Cable Type | Unshielded Twisted Pair (UTP) CAT6 cable | |
| Conductor Compatibility | 23–24 AWG solid or stranded copper conductors | |
| Contact Material | Phosphor bronze with 50 µ” gold plating over nickel | |
| Housing Material | High-impact clear polycarbonate | |
| Insertion Life | Minimum 750 mating cycles | |
| Operating Temperature Range | –10 °C to +60 °C | |
| Storage Temperature Range | –40 °C to +70 °C | |
| Flammability Rating | UL94V-2 compliant plastic housing | |
| Wire Termination Type | Standard crimp-type modular termination | |
| Pin Count | 8 pins (8P8C) | |
| Color | Transparent | |
| Compliance Standards | ANSI/TIA-568.2-D, ISO/IEC 11801, IEC 60603-7 | |
| Typical Applications | Ethernet patch cables, LAN connections, data and voice cabling systems | |
| Packaging | Individual or bulk pack (depending on distributor) | |
DME PROLINK D0713-C6UNRJ45 CAT6 Unshielded RJ45 Male Plug (8-Pin) Price in Dubai UAE
