Specifications
|
||
|---|---|---|
| Brand | DME PROLINK | |
| Model Number | D1569‑4F43‑2SCA2LCA | |

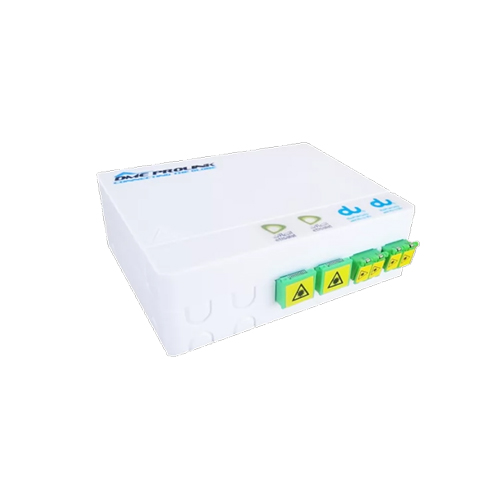

| Product Name | 4-Port Micro ODF Loaded Fiber Terminal Box | |
| Port Count | 4 | |
| Loaded Configuration | 2 LC/APC pigtails, 2 SC/APC pigtails, 2 SC/APC simplex adapters, 1 LC/APC duplex adapter; includes protection sleeves | |
| Adapter Type | Simplex SC / Duplex LC | |
| Dimensions | Approx. 100.5 × 80.5 × 28.8–31.5 mm | |
| Operating Temperature | –40 °C to +85 °C | |
| Insertion Loss | ≤ 0.2 dB | |
| Return Loss (APC) | ≥ 60 dB | |
| Material | PC + ABS housing | |
| Cable Inlet Diameter | 6 mm / compatible with 3.0 × 2.0 mm drop cable | |
| Applicable Fiber Mode | Single-Mode & Multimode | |
| Warranty | 25 years system warranty | |
| Features | Compact wall-mount box, inner slack-storage, pre-terminated pigtails, simplex & duplex adapters included, bend-radius management | |
| Applications | FTTH subscriber termination, customer-premises termination box, indoor fiber outlet | |
DME PROLINK D1569-4F43-2SCA2LCA 4-Port Micro ODF Loaded Fiber Terminal Box Price in Dubai UAE
