Specifications
|
||
|---|---|---|
| Model | SRV3KRI | |
| Product Line | APC Easy UPS | |
| UPS Type | On-Line Double Conversion | |
| Form Factor | Rack-Mount | |
| Rack Height | 2U (19-inch rack compatible) | |
| Rated Capacity | 3000 VA / 2400 W | |
| Nominal Output Voltage | 230 V | |
| Output Voltage Settings | 220 / 230 / 240 V | |
| Output Frequency | 50/60 Hz (auto-sensing) | |
| Waveform | Pure Sine Wave | |
| Output Voltage Distortion | ≤ 3% (linear load) | |
| Crest Factor | 3:1 | |
| Bypass | Automatic and Manual Internal Bypass | |
| Input Voltage Range | 110–285 V (half load), 160–280 V (full load) | |
| Input Frequency Range | 40–70 Hz | |
| Input Connection | IEC 60320 C20 | |
| Output Connections | 1 × IEC C19, 6 × IEC C13 | |
| Efficiency (Full Load) | Up to ~90% | |
| Power Factor | 0.8 | |
| Battery Type | Sealed Lead-Acid | |
| Battery Voltage | 72 V | |
| Recharge Time | Approx. 4 hours | |
| Communication Ports | USB, RS-232 | |
| Display | LCD Display | |
| Dimensions (H × W × D) | 86 mm × 437 mm × 632 mm | |
| Weight | Approx. 27.6 kg | |
| Operating Temperature | 0°C to 40°C | |
| Operating Humidity | 0–95% (non-condensing) | |
| Certifications | CE, IEC 62040 standards | |

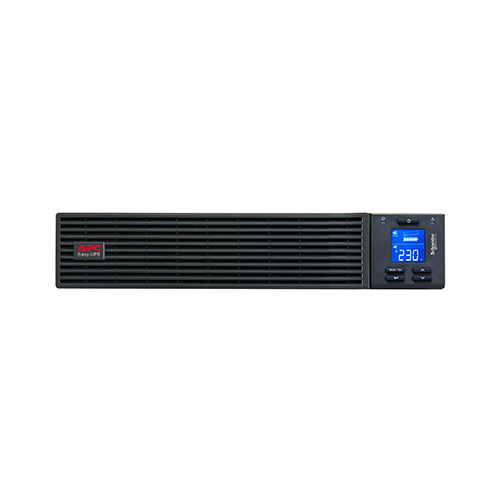

APC SRV3KRI Easy UPS SRV RM 3000VA 230V Rack-Mount Uninterruptible Power Supply Price in Dubai UAE
