Specifications
|
||
|---|---|---|
| Model | SRV10KI | |
| Product Line | APC Easy UPS On‑Line SRV | |
| UPS Topology / Type | Double‑Conversion On‑Line UPS | |
| Rated Capacity | 10,000 VA / 10,000 W | |
| Nominal Input Voltage | 230 V AC | |
| Input Voltage Range | Approx. 110–285 V (half load); 176–285 V (full load) | |
| Input Frequency Range | 40–70 Hz (auto‑sensing) | |
| Input Connection | Hard‑wired (Phase + Neutral + Earth) | |
| Nominal Output Voltage | 230 V AC | |
| Selectable Output Voltages | 220 / 230 / 240 V | |
| Output Frequency | 50/60 Hz ± 3 Hz (synchronous to mains) | |
| Waveform Type | Pure sine wave | |
| Output Voltage Distortion (THD) | Typically ≤ 3% | |
| Load Crest Factor | 3:1 | |
| Bypass | Internal automatic and manual bypass | |
| Efficiency (Full Load) | ~94% | |
| Battery Type | Sealed lead‑acid (VRLA), maintenance‑free | |
| Typical Recharge Time | ~3–4 hours to 90% | |
| Runtime | Several minutes at full load (varies with load and battery condition) | |
| Display / Interface | Multifunction LCD status and control panel | |
| Communication Ports | RS‑232, USB, Intelligent SmartSlot expansion slot | |
| Emergency Power Off (EPO) | Supported | |
| Rack Form Factor | Rack‑mount (approximately 5U or similar) | |
| Operating Temperature Range | 0 °C – 40 °C | |
| Operating Humidity | 0–95% (non‑condensing) | |
| Weight (Approx.) | ~60–70 kg | |
| Applications | Small data centers, servers, networking equipment, critical IT loads | |

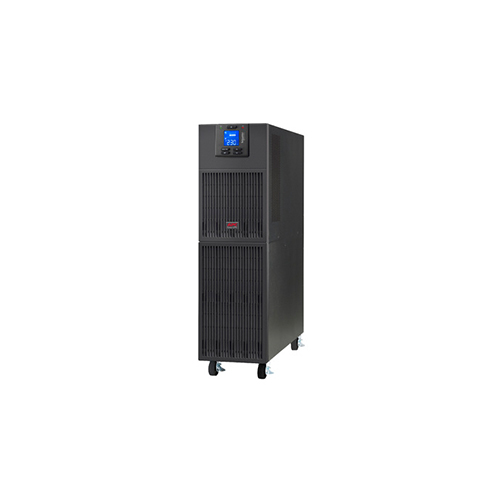

APC SRV10KI Easy UPS SRV 10000VA 230V Rack-Mount Uninterruptible Power Supply Price in Dubai UAE
