Specifications
|
||
|---|---|---|
| Model | EPDU1132MBO | |
| Product Type | EasyPDU – Metered‑by‑Outlet, Switched Rack Power Distribution Unit | |
| Mounting | Vertical, ZeroU (does not consume rack unit space) | |
| Phase | Single‑phase | |
| Nominal Input Voltage | 230 V AC | |
| Input Frequency | 50 – 60 Hz | |
| Input Connection | IEC 309 inlet (32 A, 230 V) | |
| Maximum Current | 32 A | |
| Maximum Power Capacity | ~7.4 kW (7400 VA) | |
| Total Outlets | 24 | |
| Outlet Configuration | 20 × IEC 60320 C13 + 4 × IEC 60320 C19 | |
| Metering | Meter‑by‑outlet (individual outlet current/power monitoring) | |
| Outlet Control | Individually switched (local & remote control) | |
| Display | Integrated per‑outlet display for power and status | |
| Network Management | Web, SNMP, Telnet, SSH support | |
| Communication Ports | Ethernet (RJ‑45) | |
| Environmental Sensor Ports | Optional (temperature/humidity) | |
| Form Factor | Vertical 0U | |
| Cable Length | Approx. 2.5 m | |
| Housing Material | Metal | |
| Color | Black | |
| Operating Temperature | -5 °C to 45 °C | |
| Operating Humidity | 5 – 95 % RH | |
| Net Weight | Approx. 2.3 kg | |
| Certifications | CE, RoHS | |

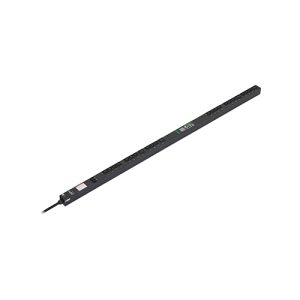

APC EPDU1132MBO EasyPDU, Metered-by-Outlet, ZeroU, 32A, 230V, (20) C13 & (4) C19 Price in Dubai UAE
Enquire on Whatsapp
Description
