Specifications
|
||
|---|---|---|
| Model Name | APC E3SUPS20KHB Easy UPS 3S 20 kVA 400 V 3:3 | |
| Product Type | Online Double-Conversion UPS | |
| Rated Power | 20 kVA / 20 kW | |
| UPS Topology | Double-conversion (online) | |
| Input Voltage (Nominal) | 400 V AC (3-phase) | |
| Input Voltage Range | 304 – 477 V AC | |
| Input Frequency Range | 45 – 65 Hz | |
| Input Power Factor | ~0.99 | |
| Output Voltage (Nominal) | 400 V AC (3-phase) | |
| Output Frequency | 50/60 Hz (synchronised to mains) | |
| Output Waveform | Pure sine wave | |
| Output Voltage Distortion (THD) | < 3 % (linear load) | |
| Output Voltage Regulation | ± 1.5 % | |
| Output Power Factor | 1.0 | |
| Overload Capability | 125 % for 10 min / 150 % for 1 min | |
| Battery Type | Internal VRLA batteries | |
| Nominal Battery Voltage | ~240 V DC | |
| Battery Configuration | Factory-installed internal battery modules | |
| Typical Backup Time | Depends on internal battery configuration and load | |
| Maximum Short-Circuit Current | ~10 kA | |
| Communication & Management | RS232, RS485, USB, dry contacts, optional SNMP/Modbus | |
| Display / Interface | Multifunction LCD display | |
| Bypass | Built-in maintenance bypass | |
| Noise Level | ~60 dBA | |
| Protection Class | IP20 | |
| Efficiency | Up to ~95 % (double conversion), higher in ECO mode | |
| Operating Temperature | 0 – 40 °C | |
| Operating Humidity | 0 – 95 % (non-condensing) | |
| Dimensions (H × W × D) | ~1400 × 380 × 928 mm | |
| Net Weight | ~122 kg | |
| Certifications / Standards | IEC 62040-1/2/3/4, CE, EAC, RCM, WEEE | |
| Parallel Capability | Supports parallel operation for capacity or redundancy | |

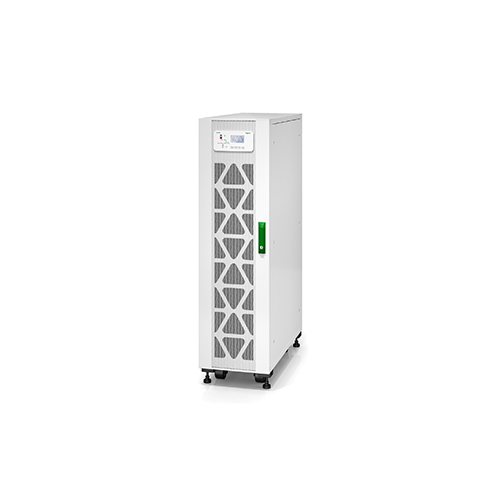

APC E3SUPS20KHB Easy UPS 3S 20kVA 400V 3:3 UPS with Internal Batteries Price in Dubai UAE
Enquire on Whatsapp
Description
