Specifications
|
||
|---|---|---|

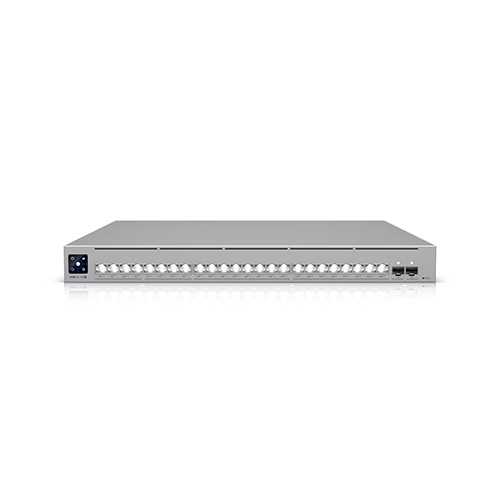

| Product Name | Ubiquiti UniFi USW-Pro-XG-24-PoE | |
| Category / Type | Professional-grade Layer-3 switch with PoE+++ | |
| Form Factor | 1U Rackmount | |
| Port Layout | • 16 × 10 GbE RJ45 (PoE+++ capable) • 8 × 2.5 GbE RJ45 (PoE+++ capable) • 2 × 25G SFP28 ports | |
| Total PoE Budget | 720 W | |
| Per-Port PoE Levels | Supports PoE / PoE+ / PoE++ / PoE+++ (up to 90W on some ports) | |
| Layer-3 Features | Inter-VLAN routing, Static routing, DHCP Server / Relay etc. | |
| Switching Capacity | 460 Gbps | |
| Non-Blocking Throughput | 230 Gbps | |
| Forwarding Rate | 342 Mpps | |
| Supported VLANs | 1,000 | |
| MAC Address Table Size | 128,000 entries | |
| L3 Table Sizes | ARP entries: 128,000   IPv4 Routes: 256,000 | |
| Packet Buffer Size | 8 MB | |
| Power Consumption | ~150 W (excluding PoE load) ~870 W (with full PoE output) | |
| Power Input | Universal 100-240V AC, 50/60 Hz Also supports DC backup (USP RPS) | |
| Weight | ~7.9 kg (without mounting brackets) ~8.0 kg (with brackets) | |
| Dimensions | 442.4 × 480 × 44 mm | |
| Operating Temperature | -5 °C to 40 °C | |
| Humidity | 10-90% non-condensing | |
| Display / Management | 1.3″ touchscreen display Full UniFi Network management (including Etherlighting™ LEDs) | |
| Enclosure Material | SGCC steel | |
| Certifications | CE, FCC, IC | |
| Use Cases | High-density PoE applications (wireless APs, cameras, high-power devices), AV installations, enterprise networks requiring strong throughput with multi-gigabit uplinks | |
Ubiquiti UniFi USW-Pro-XG-24 Switch Price in Dubai UAE
Enquire on Whatsapp
SKU:
USW-Pro-XG-24
Category: Ubiquiti UniFi Switches
Description
