Specifications
|
||
---|---|---|

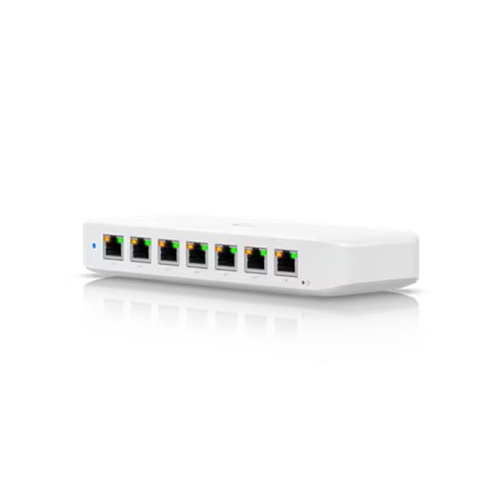

Product Name | Ubiquiti UniFi USW-Flex-2.5G-8 | |
Category / Type | Managed Layer 2 Switch | |
Form Factor | Compact Desktop, Wall, DIN Rail, or Magnetic Mount | |
Port Layout | 8 × 2.5 GbE RJ45 Ports 1 × 10 GbE RJ45/SFP+ Combo Uplink Port | |
PoE Support | 8 × PoE++ (60W) on 2.5 GbE Ports 10G Uplink Port: PoE+++ (100W) or SFP+ (data only) | |
Total PoE Budget | 76W (PoE++ Input) 46W (PoE++ Input) 16W (PoE+ Input) 196W (AC Adapter Input) | |
Switching Capacity | 60 Gbps | |
Non-Blocking Throughput | 30 Gbps | |
Forwarding Rate | 45 Mpps | |
Supported VLANs | 256 | |
MAC Address Table Size | 4,000 entries | |
Layer 2 Features | STP/RSTP, Egress Rate Limit, Flow Control, Storm Control, Multicast & Broadcast Rate Limiting, Port Isolation, Port Mirroring | |
Management Interface | UniFi Controller (Cloud Key, Dream Machine, or Network Application) | |
Power Input Options | USB-C Adapter (Included) PoE++ (802.3bt) Input Optional 54V DC Adapter (Sold Separately) | |
Power Consumption (No PoE Load) | 14W (PoE Input) 17W (AC Adapter) | |
Dimensions (W × D × H) | 212.9 × 99.4 × 33.5 mm (8.4 × 3.9 × 1.3″) | |
Weight | 567 g (1.25 lbs) | |
Operating Temperature | -20°C to 45°C (-4°F to 113°F) | |
Operating Humidity | 10–90% non-condensing | |
Certifications | CE, FCC, IC |
Ubiquiti UniFi USW-Flex-2.5G-8 Switch Price in Dubai UAE
Enquire on Whatsapp
SKU:
USW-Flex-2.5G-8
Category: Ubiquiti UniFi Switches
Description
