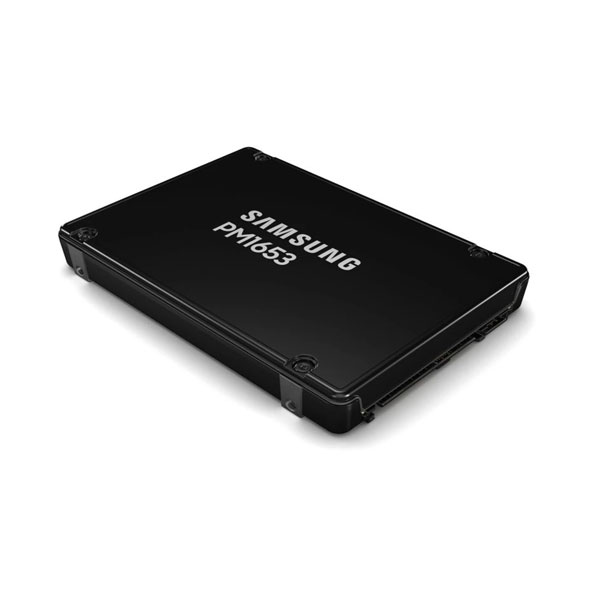

| Model Number |
MZILG7T6HBLA-00A07 |
| Series |
PM1653 |
| Capacity |
7.68 TB |
| Form Factor |
2.5-inch (15mm height) |
| Interface |
SAS 24Gb/s |
| NAND Type |
Samsung 128-layer V-NAND TLC |
| Controller |
Samsung Rhino |
| Sequential Read Speed |
Up to 4,200 MB/s |
| Sequential Write Speed |
Up to 3,700 MB/s |
| Random Read (4KB, QD32) |
Up to 770,000 IOPS |
| Random Write (4KB, QD32) |
Up to 135,000 IOPS |
| Endurance (DWPD) |
1.0 DWPD over 5 years |
| MTBF |
2 million hours |
| Data Protection |
End-to-end data protection, Power loss protection |
| Encryption Support |
AES 256-bit, TCG/Opal V2.0, IEEE1667 |
| Power Consumption |
Read: 7.0W, Write: 9.0W, Idle: 4.5W |
| Operating Temperature |
0°C to 70°C |
| Dimensions (WxDxH) |
100.20 x 69.85 x 14.80 mm |
| Weight |
≤ 160 g |
| Warranty |
5-year limited warranty or 1.0 DWPD, whichever comes first |
