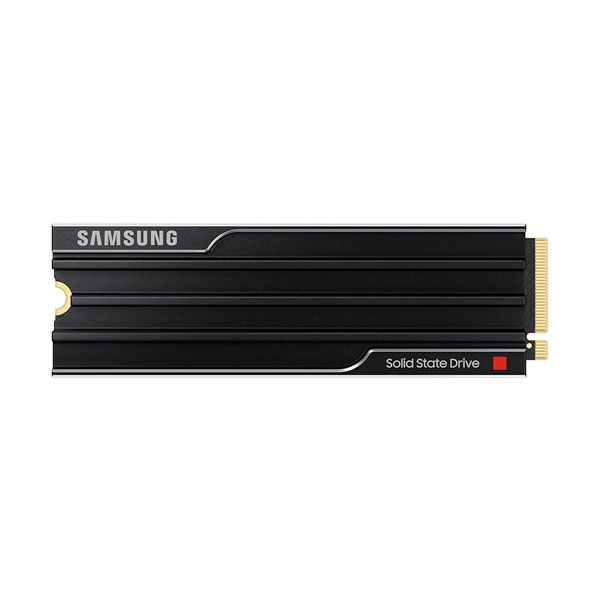

| Model Code |
MZ-VAP4T0CW |
| Series |
9100 PRO with Heatsink |
| Capacity |
4TB |
| Form Factor |
M.2 2280 with Heatsink (8.8mm thickness) |
| Interface |
PCIe Gen 5.0 x4, NVMe 2.0 |
| NAND Flash |
Samsung V-NAND TLC (236-layer) |
| Controller |
Samsung In-house 5nm Controller |
| Cache Memory |
4GB LPDDR4X SDRAM |
| Sequential Read Speed |
Up to 14,800 MB/s |
| Sequential Write Speed |
Up to 13,400 MB/s |
| Random Read (4KB, QD32) |
Up to 2,200,000 IOPS |
| Random Write (4KB, QD32) |
Up to 2,600,000 IOPS |
| Encryption Support |
AES 256-bit (Class 0), TCG/Opal v2.0, IEEE1667 |
| TRIM Support |
Yes |
| S.M.A.R.T Support |
Yes |
| Garbage Collection |
Auto Garbage Collection Algorithm |
| Device Sleep Mode Support |
Yes |
| Power Consumption (Active) |
Read: Avg 9.0W / Write: Avg 8.2W |
| Power Consumption (Idle) |
Max 6.5 mW |
| Power Consumption (Sleep) |
Max 5.7 mW |
| Operating Temperature |
0°C to 70°C |
| Shock Resistance |
1,500 G & 0.5 ms (Half sine) |
| Dimensions (W x H x D) |
80.15 x 25 x 8.88 mm (with Heatsink) |
| Weight |
Max 30.0g |
| MTBF |
1.5 Million Hours |
| Endurance (TBW) |
2,400 TBW |
| Software Support |
Samsung Magician, Data Migration Software |
| Warranty |
5-Year Limited Warranty or 2,400 TBW |
