| Model Number |

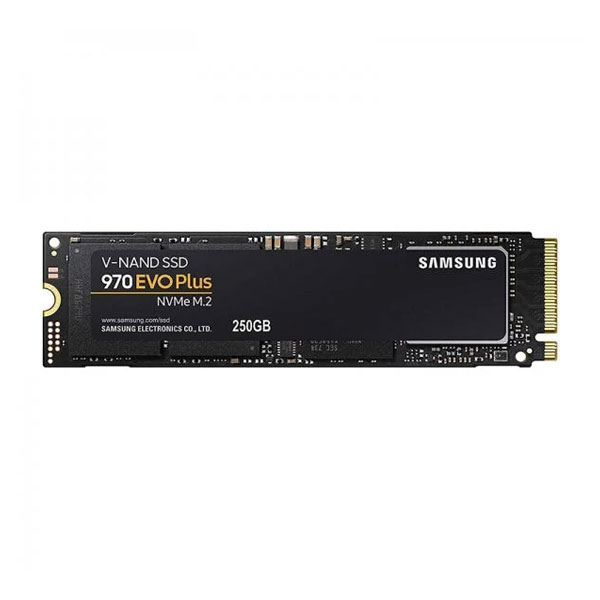

MZ-V7S250BW |
| Series |
Samsung 970 EVO Plus |
| Form Factor |
M.2 2280 |
| Interface |
PCIe Gen 3.0 x4, NVMe 1.3 |
| Capacity |
250GB |
| NAND Flash |
Samsung V-NAND 3-bit MLC |
| Controller |
Samsung Phoenix Controller |
| Sequential Read Speed |
Up to 3,500 MB/s |
| Sequential Write Speed |
Up to 2,300 MB/s |
| Random Read (4KB, QD32) |
Up to 250,000 IOPS |
| Random Write (4KB, QD32) |
Up to 550,000 IOPS |
| MTBF |
1.5 million hours |
| TBW (Total Bytes Written) |
150 TBW |
| Encryption Support |
AES 256-bit, TCG/Opal, IEEE1667 |
| Operating Temperature |
0°C to 70°C |
| Dimensions |
80.15 x 22.15 x 2.38 mm |
| Weight |
Max 8.0g |
| Warranty |
5-Year Limited Warranty |
