| Model |

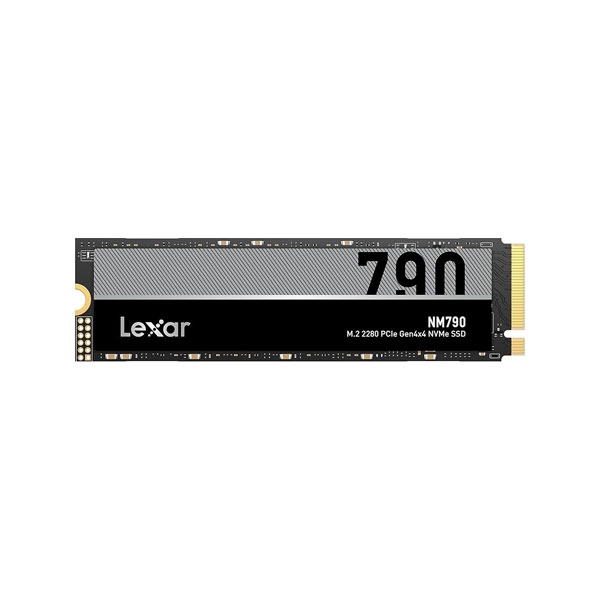

LNM790X001T-RNNNG |
| Series |
NM790 |
| Capacity |
1TB |
| Interface |
PCIe Gen4x4 |
| Form Factor |
M.2 2280 |
| Sequential Read Speed |
Up to 7400 MB/s |
| Sequential Write Speed |
Up to 6500 MB/s |
| Random Read IOPS |
Up to 1,000,000 |
| Random Write IOPS |
Up to 900,000 |
| NAND Type |
232-layer 3D TLC NAND (YMTC) |
| Controller |
MaxioTech MAP1602A (DRAM-less) |
| DRAM Cache |
No (uses Host Memory Buffer) |
| SLC Caching |
Dynamic SLC cache |
| Endurance (TBW) |
1000 TBW |
| MTBF |
1.5 million hours |
| Operating Temperature |
0°C to 70°C |
| Power Consumption |
Up to 40% lower than typical DRAM-based SSDs |
| Heatsink |
Not included (optional versions available) |
| Compatibility |
Desktops, Laptops, PlayStation 5 |
| Warranty |
5-Year Limited Warranty |
