Specifications
|
||
|---|---|---|

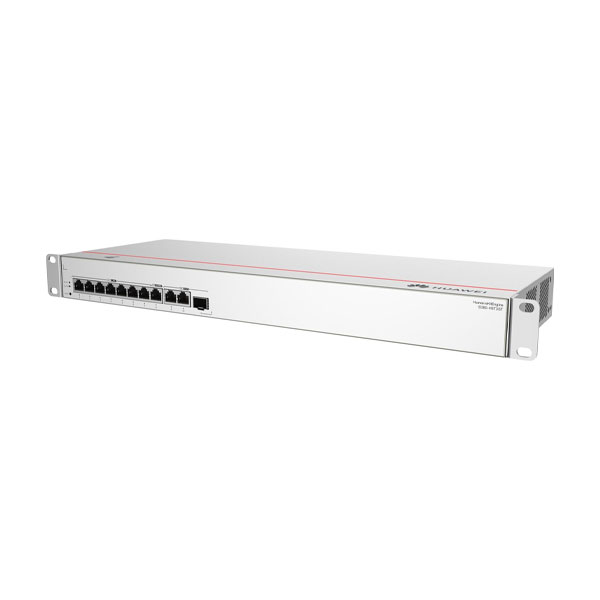

| Model | Huawei eKitEngine S380-H8T3ST | |
| WAN Ports | 2 × 10/100/1000BASE-T (Gigabit Ethernet), 1 × GE SFP (1 Gbps) | |
| LAN Ports | 8 × 10/100/1000BASE-T (Gigabit Ethernet) | |
| Maximum Users Supported | Up to 500 | |
| Switching Capacity | 16 Gbps | |
| Packet Forwarding Rate | Upload: 500 Kpps, Download: 420 Kpps | |
| Egress Bandwidth | 2 Gbps | |
| CPU | Quad-core, 800 MHz | |
| Memory | DDR4: 1 GB | |
| Flash Memory | NAND Flash: 512 MB | |
| Power Supply | 100–240 V AC, built-in | |
| Maximum Power Consumption | 11.5 W | |
| Form Factor | Rackmount (1U) | |
| Cooling | Fanless design | |
| Operating Temperature | 0°C to 40°C | |
| Operating Humidity | 5% to 95% (non-condensing) | |
| Dimensions (H × W × D) | 43.6 mm × 442 mm × 160 mm | |
| Weight | 1.6 kg | |
