| Model |

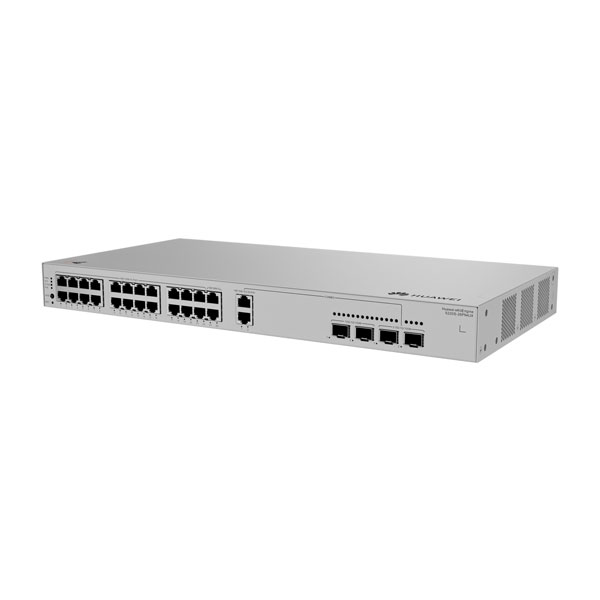

Huawei S220S-24LP4JX |
| Switch Type |
Layer 2 Managed Ethernet Switch |
| Downlink Ports |
24 × 10/100/1000BASE-T PoE+ ports |
| Uplink Ports |
2 × 10GE SFP+ ports<br>2 × 2.5GE SFP ports |
| PoE Budget |
195 Watts (built-in AC power module) |
| Switching Capacity |
98 Gbps |
| Forwarding Rate |
73 Mpps |
| MAC Address Table |
16,000 entries |
| VLAN Support |
Up to 4,094 VLANs |
| Quality of Service (QoS) |
8 queues per port, traffic policing, ACLs |
| Security Features |
DHCP snooping, DoS protection, port isolation, MAC filtering |
| Management Interfaces |
Web GUI, Huawei eKit App, SNC cloud platform |
| Power Supply |
Built-in AC (100–240 V AC, 50/60 Hz) |
| Power Consumption |
21.9 W (maximum) |
| Cooling |
Fanless (natural heat dissipation) |
| Dimensions (H × W × D) |
43.6 mm × 442 mm × 220 mm |
| Weight |
2.55 kg (without packaging) |
| Operating Temperature |
–5°C to +40°C |
| Storage Temperature |
–40°C to +70°C |
| Operating Humidity |
5% RH to 95% RH (non-condensing) |
| Form Factor |
1U, rack-mountable |
| Noise Level |
0 dB (fanless design) |
| Use Case |
Ideal for small to medium-sized businesses requiring reliable Gigabit connectivity, PoE+ support, and high-speed uplinks in a quiet, fanless design. |
