| Attribute | Details |
|---|---|
| Brand | Huawei |
| Model | S220S-24T4JX |
| Product Type | Managed Layer 2 Gigabit Ethernet Switch |
| Downlink Ports | 24 × 10/100/1000BASE-T ports |
| Uplink Ports | 2 × 10GE SFP+ ports<br>2 × 2.5GE SFP ports |
| PoE Support | No |
| Switching Capacity | 98 Gbps |
| Forwarding Rate | 73 Mpps |
| MAC Address Table | 16,000 entries |
| VLAN Support | Up to 4,096 VLANs |
| Quality of Service (QoS) | 8 queues per port, traffic policing, ACLs |
| Security Features | DHCP snooping, DoS protection, port isolation, MAC filtering |
| Management Interfaces | Web GUI, Huawei eKit App, SNC cloud platform |
| Power Supply | Built-in AC (100–240 V AC, 50/60 Hz) |
| Power Consumption | 21.9 W (maximum) |
| Cooling | Fanless (natural heat dissipation) |
| Dimensions (H × W × D) | 43.6 mm × 442 mm × 160 mm |
| Weight | 2.55 kg (without packaging) |
| Operating Temperature | –5°C to +40°C |
| Storage Temperature | –40°C to +70°C |
| Operating Humidity | 5% RH to 95% RH (non-condensing) |
| Form Factor | 1U, rack-mountable |
| Noise Level | 0 dB (fanless design) |
| Use Case | Ideal for small to medium-sized businesses requiring reliable Gigabit connectivity and high-speed uplinks in a quiet, fanless design. |

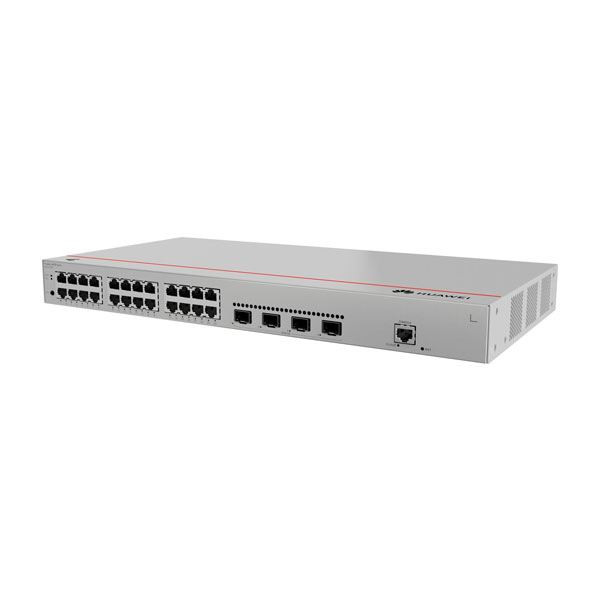

Huawei S220S-24T4JX Switch – 24-Port Gigabit Layer 2 Managed Switch with 2×10GE SFP+ & 2×2.5GE SFP Uplinks, Fanless Design, Built-in AC Power Price in Dubai UAE
