| Model |

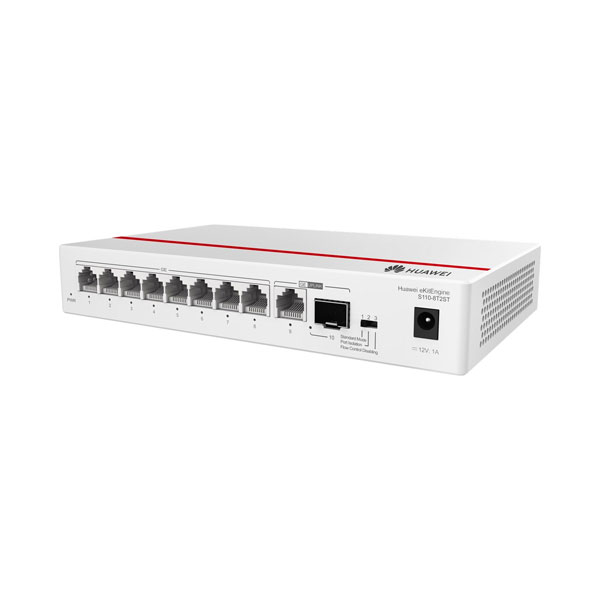

Huawei S110-8T2ST |
| Switch Type |
Unmanaged Layer 2 Ethernet Switch |
| Downlink Ports |
8 × 10/100/1000BASE-T ports |
| Uplink Ports |
1 × GE SFP port, 1 × GE electrical port |
| Switching Capacity |
20 Gbps |
| Forwarding Rate |
14.88 Mpps |
| MAC Address Table |
4,000 entries |
| Power Supply |
12 V DC via included AC power adapter |
| Maximum Power Consumption |
8 W |
| Operating Temperature |
0°C to 40°C |
| Storage Temperature |
–40°C to +70°C |
| Operating Humidity |
5% to 95% RH (non-condensing) |
| Surge Protection |
±4 kV on service ports |
| Working Modes |
Standard, Port Isolation, Flow Control Disabling |
| Cooling |
Fanless, natural heat dissipation |
| Dimensions (H × W × D) |
35 mm × 210 mm × 130 mm |
| Weight |
0.40 kg |
| Mounting Options |
Desktop, Wall-mountable |
