| Model |

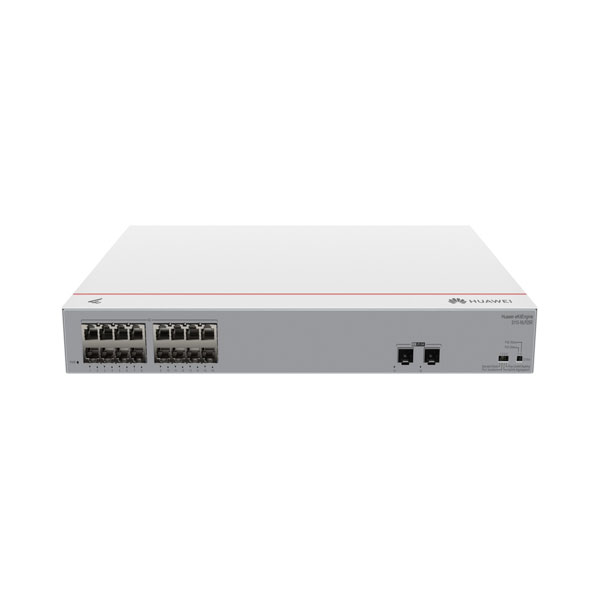

Huawei S110-16LP2SR |
| Switch Type |
Unmanaged Layer 2 Ethernet Switch |
| Downlink Ports |
16 × 10/100/1000BASE-T PoE+ ports (IEEE 802.3af/at compliant) |
| Uplink Ports |
2 × GE SFP ports |
| PoE Budget |
124 W total; supports up to 8 ports at 15.4 W (802.3af) or 4 ports at 30 W (802.3at) |
| Switching Capacity |
36 Gbps |
| Forwarding Rate |
26.78 Mpps |
| MAC Address Table |
8,000 entries |
| Working Modes |
Standard, Port Isolation, Uplink Aggregation, Flow Control Disabling |
| Power Supply |
Built-in AC power (100–240 V AC, 50/60 Hz) |
| Maximum Power Consumption |
160 W (PoE: 124 W) |
| Typical Power Consumption |
22 W |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) at altitudes up to 1800 m |
| Storage Temperature |
–40°C to +70°C (–40°F to +158°F) |
| Operating Humidity |
5% to 95% RH (non-condensing) |
| Surge Protection |
±4 kV on service ports; ±6 kV on power supply |
| Cooling |
Fanless, natural heat dissipation |
| Dimensions (H × W × D) |
43.6 mm × 442.0 mm × 260.0 mm |
| Weight |
3.0 kg (without packaging) |
| Mounting Options |
Desktop, Wall-mountable, Rack-mountable |
| Ingress Protection |
IP20 |
| Certifications |
EMC, Safety, Manufacturing |
