Specifications
|
||
|---|---|---|
| Brand | DME PROLINK | |
| Model Number | D1249‑SCA232X1 | |

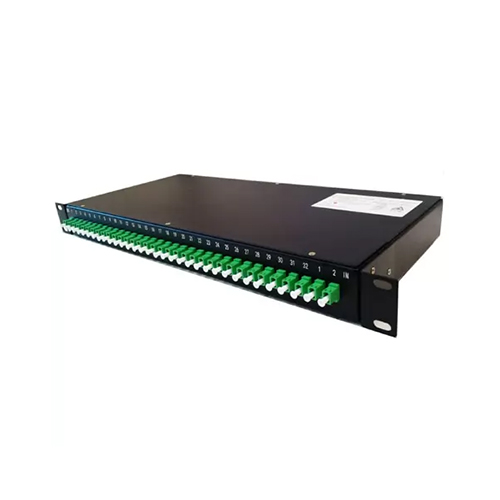

| Product Name | 19″ Rack‑Mount SC/APC 2:32 PLC Splitter Panel (1U) | |
| Form Factor | 19‑inch, 1RU rack‑mount drawer style | |
| Splitter Ratio | 2 inputs : 32 outputs (2:32) | |
| Connector Type | SC/APC (Angled Physical Contact) | |
| Operating Wavelength Range | 1260 nm to 1650 nm | |
| Maximum Insertion Loss | ≤ 16.38 dB | |
| Loss Uniformity | ≤ 0.59 dB | |
| Return Loss | ≥ 50 dB | |
| Polarization Dependent Loss (PDL) | ≤ 0.05‑0.10 dB | |
| Directivity | ≥ 60 dB | |
| Operating Temperature Range | ‑40 °C to +85 °C | |
| Storage Temperature Range | ‑40 °C to +85 °C | |
| Housing Material | Cold‑rolled steel (approx 1.5 mm plate) with durable finish | |
| Dimensions (W × D × H) | Approx. 482.5 mm (W) × 222 mm (D) × 44 mm (1RU height) | |
| Features | Pre‑connectorised SC/APC outputs, drawer slide design, clear port labelling, internal cable management | |
| Applications | FTTx networks, GPON optical distribution, high‑density splitter rack systems | |
| Warranty / System Life | 25‑year system warranty | |
DME PROLINK D1249-SCA232X1 19″ Rack-Mount SC/APC 2:32 PLC Splitter Panel (1U) Price in Dubai UAE
