Specifications
|
||
|---|---|---|
| Model / Part Number | D1149‑ID4F77A2WT | |
| Product Type | 4‑Core Indoor Drop Single‑Mode Fiber Optic Cable | |
| Fiber Type | Single‑mode OS2, compliant with ITU‑T G.657A2 | |
| Core Count | 4 fibres | |
| Strength Member | Steel wire strength member | |
| Jacket / Sheath Material | LSZH (Low Smoke Zero Halogen) | |
| Sheath Colour | White | |
| Applications | Indoor drop installations (e.g., FTTx, MDUs) | |
| Optical Attenuation @1310 nm | ≤ 0.35 dB/km before cabling | |
| Optical Attenuation @1550 nm | ≤ 0.21 dB/km before cabling | |
| Cable Cut‑off Wavelength (λcc) | ≤ 1260 nm | |
| Macro‑bend Loss | e.g., 10 turns Φ30 mm @1550 nm ≤ 0.03 dB | |
| Cladding Diameter | 125 µm ± 1 µm | |
| Fiber Count (Physical Format) | 4 fibres, bend‑insensitive type (G.657A2) | |
| Maximum Tensile Load (Short Term) | ≥ 220 N | |
| Crush Resistance | 1000 N/100 mm | |
| Minimum Bending Radius (Installation) | 30 mm | |
| Minimum Bending Radius (Operation) | 15 mm | |
| Operating Temperature Range | –20 °C to +60 °C | |
| Installation / Storage Temp Range | –20 °C to +60 °C | |
| Design Life | Approx. 30 years | |
| Compliance / Standards | ITU‑T G.657A2, IEC 60793‑1, IEC 60794‑2‑21, Telcordia GR‑20 | |

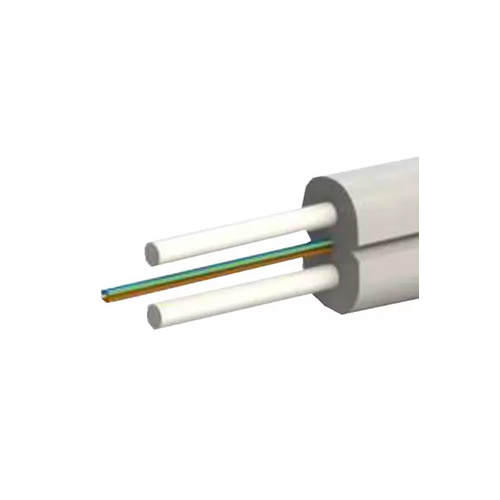

DME PROLINK D1149-ID4F77A2WT 4-Core Indoor Drop Fiber Optic Cable (G.657A2, LSZH, White) Price in Dubai UAE
