Specifications
|
||
|---|---|---|
| Model | SRV6KRI | |
| Product Line | APC Easy UPS On‑Line SRV | |
| UPS Topology / Type | Double‑Conversion On‑Line UPS | |
| Rated Capacity | 6000 VA / 6000 W | |
| Nominal Input Voltage | 230 V AC | |
| Input Voltage Range | Approx. 110–285 V (half load); ~176–285 V (full load) | |
| Input Frequency Range | 40–70 Hz (auto‑sensing) | |
| Input Connection | Hard‑wired (Phase + Neutral + Earth) | |
| Nominal Output Voltage | 230 V AC | |
| Selectable Output Voltages | 220 / 230 / 240 V | |
| Output Frequency | 50/60 Hz ± 3 Hz (synchronous to mains) | |
| Waveform Type | Pure sine wave | |
| Output Voltage Distortion (THD) | Typically ≤ ~3% | |
| Crest Factor | 3:1 | |
| Bypass | Automatic and Manual Internal Bypass | |
| Efficiency (Full Load) | Up to ~94% | |
| Battery Type | Sealed Lead‑Acid (maintenance‑free) | |
| Battery Voltage Configuration | Designed for high‑voltage string (manufacturer defined) | |
| Typical Recharge Time | Approx. 4–6 hours to ~90% | |
| Emergency Power Off (EPO) | Supported | |
| Display / Interface | Multifunction LCD status console | |
| Communication Ports | USB, RS‑232 and optional network card support | |
| Rack Form Factor | Rack‑Mount (4U) | |
| Dimensions (H × W × D) | Approx. 173 × 438 × 710 mm | |
| Weight (Approx.) | ~60–62 kg | |
| Operating Temperature Range | 0 °C – 40 °C | |
| Operating Humidity | 0–95% (non‑condensing) | |
| Certifications / Standards | Industry safety and EMC standards | |

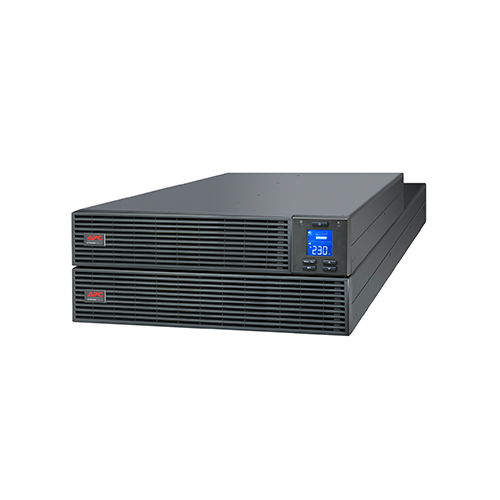

APC SRV6KRI Easy UPS SRV RM 6000VA 230V Rack-Mount Uninterruptible Power Supply Price in Dubai UAE
