Specifications
|
||
|---|---|---|
| Model | SRV6KI | |
| Product Line | APC Easy UPS On‑Line SRV | |
| UPS Type / Topology | Double‑Conversion On‑Line UPS | |
| Rated Capacity | 6000 VA / 6000 W | |
| Nominal Input Voltage | 230 V AC | |
| Input Voltage Range | Approx. 110–285 V (half load); 176–285 V (full load) | |
| Input Frequency Range | 40–70 Hz (auto‑sensing) | |
| Input Connection | Hard‑wired 3‑wire (Phase + Neutral + Earth) | |
| Nominal Output Voltage | 230 V AC | |
| Selectable Output Voltages | 220 / 230 / 240 V | |
| Output Frequency | 50/60 Hz ± 3 Hz (synchronous to mains) | |
| Waveform Type | Pure sine wave | |
| Output Voltage Distortion (THD) | ≤ ~3% | |
| Crest Factor | 3:1 | |
| Output Connections | Hard‑wired or terminals (depends on installation) | |
| Bypass | Automatic and Manual Internal Bypass | |
| Efficiency (Full Load) | Up to ~94% | |
| Battery Type | Sealed, maintenance‑free lead‑acid (VRLA) | |
| Battery System Voltage | Approx. 192 V (configured as multiple 12 V batteries) | |
| Typical Recharge Time | Approx. 4–7 hours to 90% | |
| Emergency Power Off (EPO) | Supported | |
| Display / Interface | Multifunction LCD status and control | |
| Communication Ports | USB, RS‑232, SmartSlot expansion | |
| Operating Temperature Range | 0 °C – 40 °C | |
| Operating Humidity | 0 – 95% (non‑condensing) | |
| Operating Altitude | Up to ~3000 m | |
| Form Factor | Tower (convertible to rack) | |
| Dimensions (H × W × D) | Approx. 685 × 190 × 374 mm | |
| Weight (Approx.) | ~54 kg | |
| Certifications / Standards | IEC safety & EMC standards (e.g., IEC 62040 series) | |

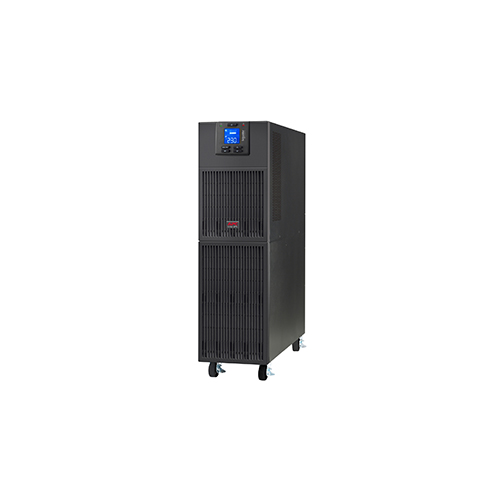

APC SRV6KI Easy UPS SRV 6000VA 230V Price in Dubai UAE
