Specifications
|
||
|---|---|---|
| Brand | APC | |
| Model | SRV3KIL | |
| UPS Topology | Online Double Conversion | |
| Rated Apparent Power | 3000 VA | |
| Rated Output Power | 2400 W | |
| Nominal Input Voltage | 230 V AC | |
| Input Voltage Range | 110–280 V (half load), 160–280 V (full load) | |
| Input Frequency Range | 40–70 Hz (auto‑sensing) | |
| Nominal Output Voltage | 230 V AC (selectable 220 / 230 / 240 V) | |
| Output Frequency | 50 / 60 Hz ±3 Hz | |
| Output Waveform | Pure Sine Wave | |
| Output Connections | 6 × IEC C13, 1 × IEC C19 | |
| Input Connection | IEC C14 / C20 | |
| Bypass | Automatic internal bypass | |
| Battery Type | Sealed Lead‑Acid (VRLA) with external battery pack | |
| Battery Voltage | 72 V DC | |
| External Battery Pack | Included / expandable for extended runtime | |
| Battery Recharge Time | ~4–5.5 hours | |
| Crest Factor | 3:1 | |
| Efficiency (Online Mode) | ~88 % | |
| Display | Multifunction LCD panel | |
| Communication Interfaces | USB, RS‑232, intelligent card slot | |
| Surge Protection & Filtering | Built‑in | |
| Operating Temperature | 0–40 °C | |
| Operating Humidity | 0–95 % non‑condensing | |
| Noise Level | ~50 dBA | |
| Form Factor | Tower standalone | |
| Dimensions (H × W × D) | ~336 × 425 × 425 mm | |
| Net Weight | ~45.9 kg (UPS with external battery pack) | |
| Protection Rating | IP20 | |
| Certifications / Standards | CE, IEC 62040 series | |

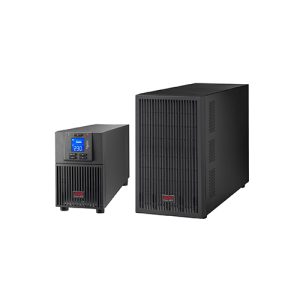

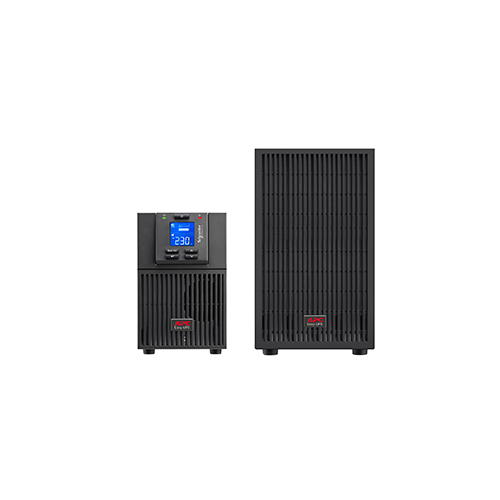

APC SRV3KIL Easy UPS SRV 3000VA 230V with External Battery Pack Price in Dubai UAE
Enquire on Whatsapp
Description
