Specifications
|
||
|---|---|---|
| Model / Series | APC Easy UPS 3S E3SUPS15KHB | |
| Rated Power | 15 kVA / 15 kW | |
| UPS Topology | Double‑conversion online | |
| Phase Configuration | 3‑Phase Input / 3‑Phase Output | |
| Input Voltage | 380 / 400 / 415 V AC | |
| Input Voltage Range | 304 – 477 V AC | |
| Input Frequency Range | 45 – 65 Hz | |
| Input Power Factor | ~0.99 (at full load) | |
| Input THD | < 3 % (typical) | |
| Maximum Input Current | ~28 A | |
| Output Voltage | 380 / 400 / 415 V AC | |
| Output Frequency | 50 / 60 Hz (synchronized to mains) | |
| Output Voltage Regulation | ± 1 % – ± 1.5 % | |
| Output THD | < 3 % (linear load) | |
| Load Crest Factor | 3 : 1 | |
| Overload Capability | Typical overload handling (125 % for 10 min; 150 % for short duration) | |
| Battery Support | Internal battery modules (batteries not included) | |
| Nominal Battery Voltage | ~240 V DC (internal battery bus) | |
| Number of Battery Slots | Multiple internal battery slots available | |
| ECO Mode | Yes (improves efficiency under stable mains) | |
| EPO (Emergency Power Off) | Supported | |
| Efficiency (Online Mode) | ~94.5 % (typical) | |
| Noise Level | ~60 dB | |
| Display / UI | LED/LCD status indicators | |
| Cooling | Active fan cooling | |
| Form Factor | Tower cabinet | |
| Protection Class | IP20 (indoor use) | |
| Operating Temperature | 0 °C – 40 °C | |
| Humidity (Operating) | 0 – 95 % (non‑condensing) | |
| Altitude Rating | Up to ~1000 m | |
| Dimensions (H × W × D) | Approx. 1400 × 380 × 928 mm | |
| Weight (Net) | Approx. 112 kg | |
| Certifications / Standards | IEC 62040‑1 / 62040‑2 / 62040‑3 / 62040‑4, CE, EAC, RCM, WEEE/REACH | |

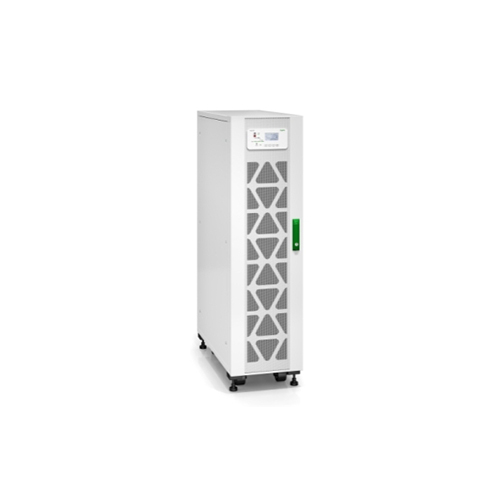

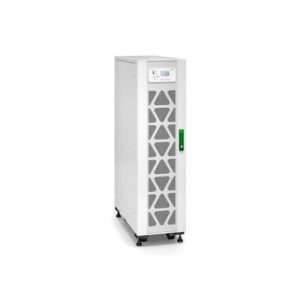

APC E3SUPS15KHB Easy UPS 3S 15kVA 400V 3:3 UPS for Internal Batteries Price in Dubai UAE
