Specifications
|
||
|---|---|---|
| Model / Series | APC Easy UPS 3S Pro E3SP30KH | |
| Rated Power | 30 kVA / 30 kW | |
| UPS Topology | Double‑conversion Online | |
| Phase Configuration | 3‑Phase Input / 3‑Phase Output | |
| Input Voltage | 380 / 400 / 415 V AC | |
| Input Voltage Range | 304 – 477 V AC | |
| Input Frequency Range | 45 – 65 Hz | |
| Input Power Factor | ≥ 0.99 at full load | |
| Input THDi | < 4 % (typical for 15–40 kVA class) | |
| Output Voltage | 380 / 400 / 415 V AC | |
| Output Frequency | 50 / 60 Hz (synchronized to mains) | |
| Output Voltage Regulation | ± 1 % | |
| Output THDv | < 3 % (linear load) | |
| Load Crest Factor | 3 : 1 | |
| Overload Capability | 130 % for 10 min; 130–150 % for 1 min | |
| Bypass | Built‑in maintenance bypass | |
| Battery Type | External battery system (batteries not included) | |
| Battery DC Bus | Approx. ±192 V to ±240 V (depends on external battery design) | |
| Charging Power | Selectable (e.g., 1 – 20 % of output power) | |
| Communications & Control | Multi‑function LCD display with status & control; RS‑485, dry contacts, optional Ethernet (SNMP/Modbus/BACnet) | |
| Protection Class | IP20 (indoor use) | |
| Operating Temperature | 0 °C to 40 °C | |
| Relative Humidity (Operating) | 0 – 95 % non‑condensing | |
| Altitude Rating | Designed for 0 – 1000 m at full load | |
| Efficiency (Double Conversion) | Up to ~96 % | |
| Efficiency (ECO Mode) | Up to ~99 % | |
| Audible Noise | ~63 dB at full load (typical for 30–40 kVA range) | |
| Dimensions (H × W × D) | Approx. 796 × 250 × 916 mm | |
| Weight (Net) | Approx. 56 kg | |
| Standards / Certification | IEC/EN 62040‑1/-2/-3/-4; CE; RCM; EAC; WEEE compliant | |

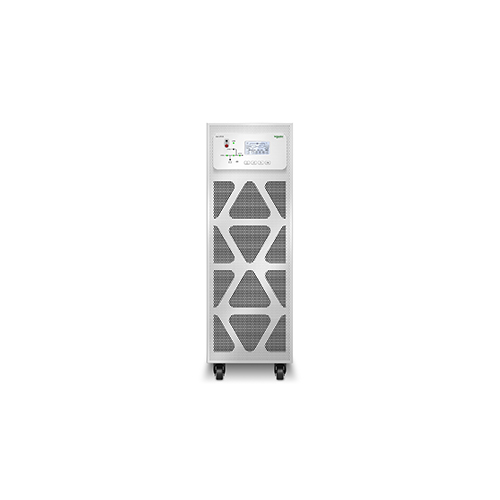

APC E3SP30KH Easy UPS 3S Pro 30kVA 400V 3:3 UPS for External Batteries Price in Dubai UAE
