Specifications
|
||
|---|---|---|

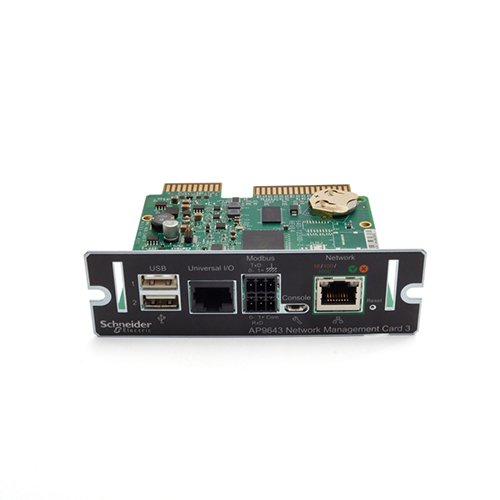

| Product Name | UPS Network Management Card 3 with Environmental Monitoring & Modbus | |
| Model Number | AP9643 | |
| Manufacturer | Schneider Electric | |
| Brand | APC | |
| Product Type | Network Management Card (NMC3) with Environmental & Modbus support | |
| Application | Remote network monitoring, environmental sensing, and Modbus integration for UPS systems | |
| Compatible UPS | APC Smart‑UPS and compatible Symmetra UPS models with SmartSlot | |
| Network Interface | Gigabit Ethernet (10/100/1000 Mbps) | |
| Ethernet Port | 1 × RJ‑45 | |
| USB Interface | 1 × Micro‑USB console port | |
| Environmental Sensor Ports | Connector(s) for external environmental sensors (temperature/humidity/dry contacts) | |
| Modbus Support | Modbus TCP/IP and Modbus RTU support | |
| Protocols Supported | HTTPS/SSL, SSH, SNMPv1/v2c/v3, BACnet/IP, IPv4, IPv6 | |
| Remote Access | Web UI, CLI (SSH/Telnet), and SNMP management | |
| Security Features | SSL encryption, SNMPv3, role‑based user access | |
| Event & Alerts | Configurable notifications: email, SNMP traps, Syslog | |
| Logging | Event and environmental data logging with trend support | |
| Management Integration | EcoStruxure IT and SNMP‑based network management systems | |
| PowerChute Network Shutdown | Compatible (graceful automated shutdown) | |
| Dimensions (H Ă— W Ă— D) | Approx. typical network card form factor | |
| Net Weight | ~0.1–0.15 kg (typical) | |
| Operating Temperature | 0 °C to 45 °C | |
| Storage Temperature | −5 °C to 45 °C | |
| Operating Humidity | 0–95 % RH (non‑condensing) | |
| Operating Altitude | Up to ~3048 m (10,000 ft) | |
| Certifications / Compliance | Standard UPS communication card EMC and safety approvals | |
| Included Accessories | Installation manual, USB console cable, external sensor interface | |
APC AP9643 UPS Network Management Card 3 with Environmental Monitoring and Modbus Price in Dubai UAE
